| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09791646907 |
| Pitch: | 2.54 mm |
| Gender: | Male |
| Series: | DIN 41612 |
| Mount Angle: | Straight |
| Tail Length: | 13 mm |
| Mating Cycles: | 400 cycle |
| Current Rating: | 2 A |
| Number of Rows: | 3 |
| Voltage Rating: | 1.55 kV, 1 kV |
| Contact Plating: | Gold Over Nickel Phosphorus Over Nickel, Nickel |
| Housing Material: | Glass-Filled Plastic |
| Performance Level: | Class II |
| Number of Contacts: | 64 |
| Termination Method: | Wire Wrap |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09791646907 |
09791646907
Specifications
Detailed Description

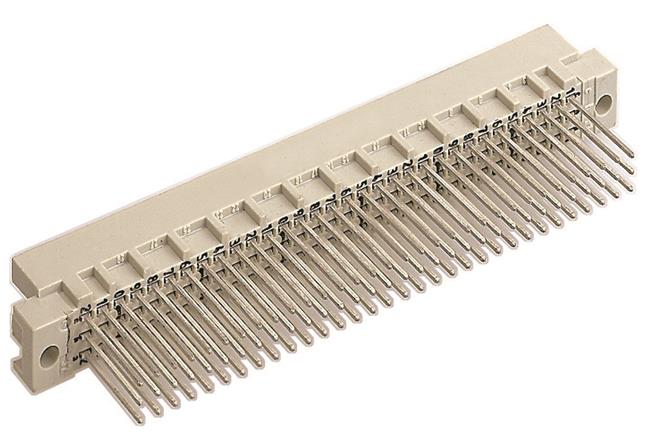

Introducing the 09791646907, a high-performance DIN 41612 Type R (HE11) male connector designed for seamless PCB to cable and cable to cable connections. Constructed with durable thermoplastic resin and glass-fibre filling, this connector ensures reliable signal transmission in various applications. With 64 contacts spread across 3 rows, it offers ample connectivity options. The wire wrap termination method guarantees secure and efficient installations. Featuring nickel and gold plating over a nickel phosphorus base, it ensures excellent conductivity and corrosion resistance. Operating between -55°C to 125°C, this connector is suitable for harsh environmental conditions. With a pitch of 2.54mm and straight mount angle, it is easy to integrate into existing systems. Trust in the 09791646907 for high-reliability connectivity in backplane and PCB applications.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
