| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09791962961 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 96 |
| Number of Rows: | 3 |
| Termination Method: | Press-Fit, Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 13 mm |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09791962961 |
09791962961
Specifications
Detailed Description

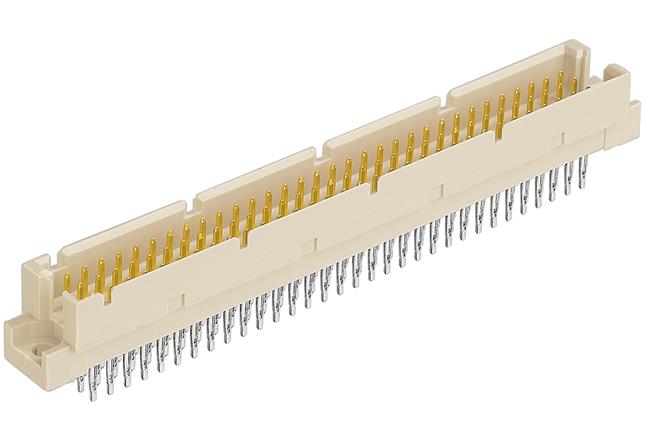

Introducing the 09791962961, a high-performance DIN 41612 Type RM Male Connector designed for seamless connectivity in various applications. Constructed with durable thermoplastic resin and glass-fibre filling, this connector ensures reliable data transmission between motherboard to daughtercard, mezzanine, and PCB to cable. Featuring a sleek Pebble Gray color, it seamlessly blends with any setup. With 96 contacts in 3 rows, Press-Fit and Wire Wrap termination methods, and Copper Alloy contacts with Nickel plating, it guarantees efficient signal transfer. Operating in temperatures ranging from -40°C to 105°C, this connector is suitable for diverse environments. With a pitch of 2.54mm and straight mount angle, installation is quick and easy. Its UL 94V-0 flammability rating, 2A current rating, and 1kV voltage rating ensure safety and compliance. Trust the 09791962961 for robust and dependable board-to-board PCB connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
