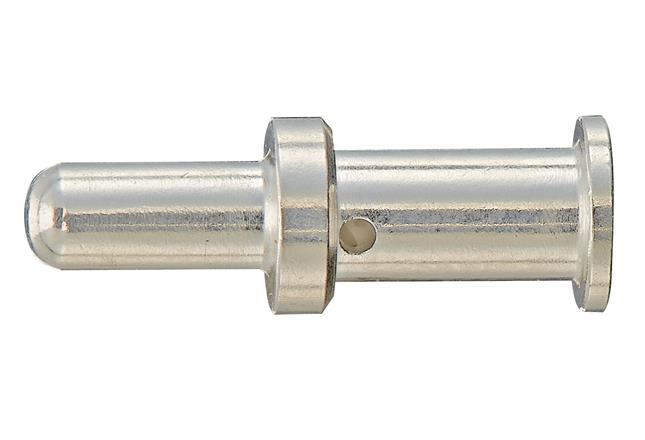

11050006106

HRT11050006106
Heilind Number:HRT11050006106
Manufacturer:HARTING
Manufacturer Number:11050006106
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

System with many functionalities. The Han-Yellock® interface consists of a bulkhead mounted housing on the cabinet side and a carrier hood with cover on the cable side. The locking ability is a key function of the Han-Yellock®. The function makes connections and disconnections safe, simple and quick – even under harsh industrial conditions. One Han-Yellock® feature is a patented internal locking mechanism like the seat belt. The locking takes place as the cable and device sides are simply joined together. The hoods/housing are not mating compatible with other Han® hood/housing series. By using the Han-Yellock® modules, only male contacts are needed and in addition the PE terminal can be assembled with crimp or Han Quick-Lock® termination. Modules from the Han-Modular® series will be used in combination with the Han-Yellock® adapter frame.The Han-Yellock® system can be used with a variety of inserts in order to establish flexible interface possibilities.

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 11050006106
Series:Han-Yellock®
Gender:Male
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Silver
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:2 mΩ
Mating Cycles:500 cycle
Wire Size:14 AWG
Contact Design:Machined
Current Rating:20 A
Stripping Length:6.5 mm
SKU:HRT11050006106

Detailed Description

This system, featuring the Han-Yellock® interface, offers a multitude of functionalities essential for industrial operations. Its innovative design includes a bulkhead mounted housing on the cabinet side and a carrier hood with cover on the cable side, ensuring secure and efficient connections. The patented internal locking mechanism, akin to a seat belt, guarantees swift and safe disconnections even in harsh environments. With compatibility limited to Han-Yellock® components, this system streamlines installation and maintenance processes. The included male crimp contact, with a wire size of 2.5 MM2, and silver-plated copper alloy construction, ensures reliable and high-performance connectivity. Rated for a maximum operating temperature of 125°C and boasting a low contact resistance of 2 mΩ, this product is ideal for demanding applications. Its versatility is further enhanced by the option to use Han-Modular® series modules with the included adapter frame, offering flexibility in interface configurations. Trust in the Han-Yellock® system for seamless and durable connectivity solutions in your industrial setting.
