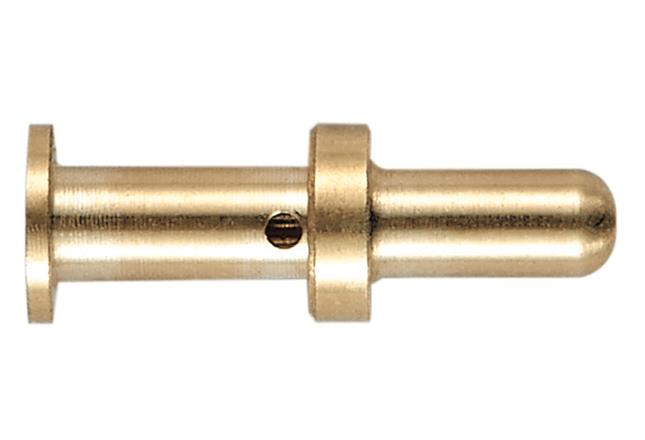

11050006122

HRT11050006122
Heilind Number:HRT11050006122
Manufacturer:HARTING
Manufacturer Number:11050006122
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

System with many functionalities. The Han-Yellock® interface consists of a bulkhead mounted housing on the cabinet side and a carrier hood with cover on the cable side. The locking ability is a key function of the Han-Yellock®. The function makes connections and disconnections safe, simple and quick – even under harsh industrial conditions. One Han-Yellock® feature is a patented internal locking mechanism like the seat belt. The locking takes place as the cable and device sides are simply joined together. The hoods/housing are not mating compatible with other Han® hood/housing series. By using the Han-Yellock® modules, only male contacts are needed and in addition the PE terminal can be assembled with crimp or Han Quick-Lock® termination. Modules from the Han-Modular® series will be used in combination with the Han-Yellock® adapter frame.The Han-Yellock® system can be used with a variety of inserts in order to establish flexible interface possibilities.

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 11050006122
Series:Han-Yellock®
Gender:Male
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Gold
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:2 mΩ
Mating Cycles:500 cycle
Wire Size:20 AWG
Contact Design:Machined
Current Rating:20 A
Stripping Length:6.5 mm
SKU:HRT11050006122

Detailed Description

The Han-Yellock® System ( 11050006122) offers a robust and efficient solution for industrial connectivity. Featuring a unique locking mechanism, connections and disconnections are safe, simple, and quick, even in harsh environments. With a patented internal locking system akin to a seat belt, users can easily secure the cable and device sides together. This system, not compatible with other Han® series, requires only male contacts and allows for PE terminal assembly with crimp or Han Quick-Lock® termination. Utilizing Han-Modular® series modules in combination with the Han-Yellock® adapter frame, a variety of inserts can be used to establish flexible interface possibilities. The included crimp contact, male, 0.5 MM2, ensures reliable performance with features like gold plating, low contact resistance, and a high current rating of 20 A. Suitable for a wide range of applications, the Han-Yellock® System is a dependable choice for industrial connectivity needs.
