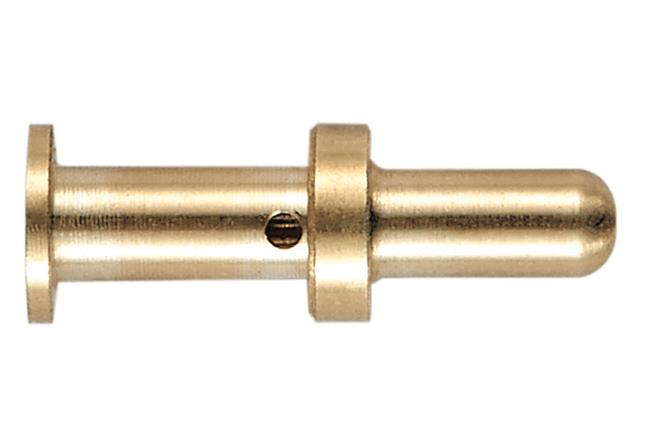

11050006127

HRT11050006127
Heilind Number:HRT11050006127
Manufacturer:HARTING
Manufacturer Number:11050006127
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

System with many functionalities. The Han-Yellock® interface consists of a bulkhead mounted housing on the cabinet side and a carrier hood with cover on the cable side. The locking ability is a key function of the Han-Yellock®. The function makes connections and disconnections safe, simple and quick – even under harsh industrial conditions. One Han-Yellock® feature is a patented internal locking mechanism like the seat belt. The locking takes place as the cable and device sides are simply joined together. The hoods/housing are not mating compatible with other Han® hood/housing series. By using the Han-Yellock® modules, only male contacts are needed and in addition the PE terminal can be assembled with crimp or Han Quick-Lock® termination. Modules from the Han-Modular® series will be used in combination with the Han-Yellock® adapter frame.The Han-Yellock® system can be used with a variety of inserts in order to establish flexible interface possibilities.

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 11050006127
Series:Han-Yellock®
Gender:Male
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Gold
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:2 mΩ
Mating Cycles:500 cycle
Wire Size:12 AWG
Contact Design:Machined
Current Rating:20 A
Stripping Length:6.5 mm
SKU:HRT11050006127

Detailed Description

The Han-Yellock® System with SKU 11050006127 is a versatile and efficient solution for industrial connectivity. Featuring a unique locking mechanism similar to a seat belt, this system ensures safe and quick connections even in harsh environments. With a bulkhead mounted housing on the cabinet side and a carrier hood with cover on the cable side, it offers convenience and reliability. Specifically designed for use with male contacts and offering compatibility with Han-Modular® series inserts, it allows for flexible interface possibilities. The included crimp contact, male, 3 MM2, made of copper alloy with gold plating, guarantees optimal performance. With a wide operating temperature range from -40 °C to 125 °C, and a contact resistance of 2 mΩ, it is suitable for various applications. The Han-Yellock® System, with a current rating of 20 A and a high mating cycle of 500 cycles, is a durable and efficient choice for your connectivity needs.
