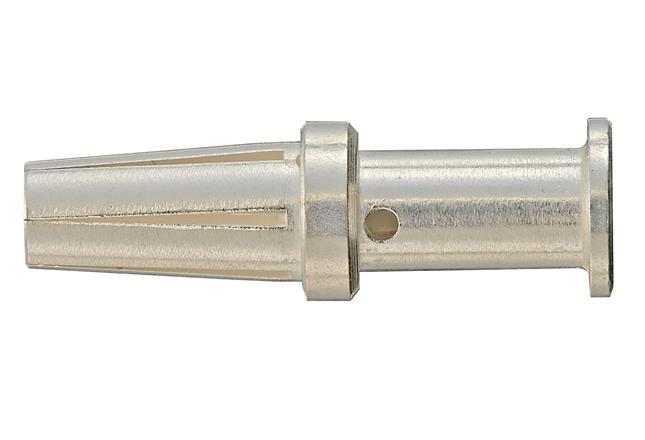

11050006203

HRT11050006203
Heilind Number:HRT11050006203
Manufacturer:HARTING
Manufacturer Number:11050006203
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

System with many functionalities. The Han-Yellock® interface consists of a bulkhead mounted housing on the cabinet side and a carrier hood with cover on the cable side. The locking ability is a key function of the Han-Yellock®. The function makes connections and disconnections safe, simple and quick – even under harsh industrial conditions. One Han-Yellock® feature is a patented internal locking mechanism like the seat belt. The locking takes place as the cable and device sides are simply joined together. The hoods/housing are not mating compatible with other Han® hood/housing series. By using the Han-Yellock® modules, only male contacts are needed and in addition the PE terminal can be assembled with crimp or Han Quick-Lock® termination. Modules from the Han-Modular® series will be used in combination with the Han-Yellock® adapter frame.The Han-Yellock® system can be used with a variety of inserts in order to establish flexible interface possibilities.

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 11050006203
Series:Han-Yellock®
Gender:Female
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Silver
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:2 mΩ
Mating Cycles:500 cycle
Wire Size:18 AWG
Contact Design:Machined
Current Rating:20 A
Stripping Length:6.5 mm
SKU:HRT11050006203

Detailed Description

The Han-Yellock® System offers a multitude of functionalities for secure and efficient connections in industrial settings. Featuring a patented internal locking mechanism, similar to a seat belt, it ensures quick and safe mating and unmating of cable and device sides. Specifically designed for use with only male contacts, it streamlines assembly processes. With a crimp contact, female termination method, and silver-plated copper alloy construction, it guarantees reliable conductivity. Rated for temperatures ranging from -40°C to 125°C, and with a contact resistance of just 2 mΩ, it ensures optimal performance even in harsh environments. With a mating cycle of 500 cycles, it offers long-lasting durability. RoHS compliant and suitable for use with 18 AWG wire, it meets high industry standards for quality and reliability.
