11050006223

HRT11050006223
Heilind Number:HRT11050006223
Manufacturer:HARTING
Manufacturer Number:11050006223
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

System with many functionalities. The Han-Yellock® interface consists of a bulkhead mounted housing on the cabinet side and a carrier hood with cover on the cable side. The locking ability is a key function of the Han-Yellock®. The function makes connections and disconnections safe, simple and quick – even under harsh industrial conditions. One Han-Yellock® feature is a patented internal locking mechanism like the seat belt. The locking takes place as the cable and device sides are simply joined together. The hoods/housing are not mating compatible with other Han® hood/housing series. By using the Han-Yellock® modules, only male contacts are needed and in addition the PE terminal can be assembled with crimp or Han Quick-Lock® termination. Modules from the Han-Modular® series will be used in combination with the Han-Yellock® adapter frame.The Han-Yellock® system can be used with a variety of inserts in order to establish flexible interface possibilities.

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 11050006223
Series:Han-Yellock®
Gender:Female
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Gold
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:2 mΩ
Mating Cycles:500 cycle
Wire Size:18 AWG
Contact Design:Machined
Current Rating:20 A
Stripping Length:6.5 mm
SKU:HRT11050006223

Detailed Description

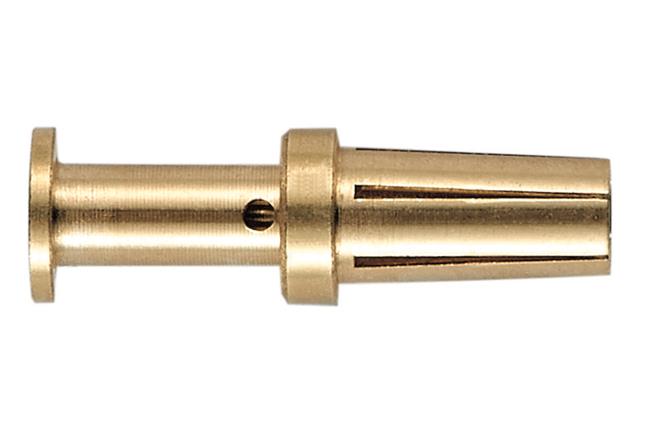

The Han-Yellock® System revolutionizes industrial connectivity with its innovative design, offering safe, simple, and quick connections even in harsh conditions. Featuring a patented internal locking mechanism akin to a seat belt, this system ensures secure mating of cable and device sides. Specifically designed for use with the Han-Modular® series, it allows for flexible interface possibilities. This particular SKU, 11050006223, is a female crimp contact suitable for 0.75 MM2 wires, with a robust construction of copper alloy and gold plating ensuring reliable performance. With a wide operating temperature range from -40°C to 125°C, a low contact resistance of 2 mΩ, and a high current rating of 20 A, it guarantees optimal functionality in diverse applications. Trust in the Han-Yellock® System for efficient and durable connectivity solutions.
