| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 14310313101000 |
| Pitch: | 2.54 mm |
| Series: | har-flexicon® |
| Wire Size: | 26 - 20 AWG |
| Mount Angle: | Straight |
| Housing Color: | Black |
| Conductor Size: | 26 - 20 AWG |
| Current Rating: | 6 A |
| Voltage Rating: | 160 V |
| Contact Plating: | Tin |
| Number of Poles: | 3 |
| Contact Material: | Copper Alloy, Spring Steel |
| Housing Material: | Liquid Crystal Polymer |
| Number of Levels: | 1 |
| Termination Method: | Spring Cage |
| Flammability Rating: | UL 94V-0 |
| Insulation Material: | Liquid Crystal Polymer |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | HRT14310313101000 |
14310313101000
Specifications
Detailed Description

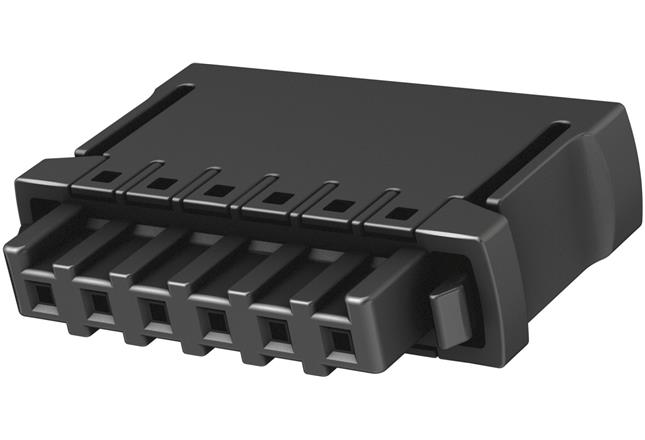

Introducing the har-flexicon® Vertical Connector, a versatile and reliable solution for your PCB to cable connections. Designed for seamless integration, this connector features a robust Liquid Crystal Polymer housing in sleek black, ensuring durability and performance in any application. With a convenient Push-in-spring-cage termination method, installation is quick and effortless. Rated for a current of 6A and featuring 3 contacts, it offers efficient power transmission. The connector is RoHS compliant and operates flawlessly in temperatures ranging from -40°C to 125°C. Its straight mount angle, 2.54mm pitch, and UL 94V-0 flammability rating make it ideal for a wide range of industrial and electronic projects. Trust in the har-flexicon® Connector for high-quality, secure connections every time.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
