| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 14310317102000 |
| Series: | har-flexicon® |
| Housing Material: | Nylon |
| Termination Method: | Spring Cage |
| Contact Material: | Copper Alloy |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 110 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 5.08 mm |
| Insulation Material: | Nylon |
| Mount Angle: | Straight |
| Number of Poles: | 3 |
| Number of Levels: | 1 |
| Housing Color: | Green |
| Wire Size: | 30 - 12 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 12 A |
| Voltage Rating: | 250 V |
| Conductor Size: | 30 - 12 AWG |
| SKU: | HRT14310317102000 |
14310317102000
Specifications
Detailed Description

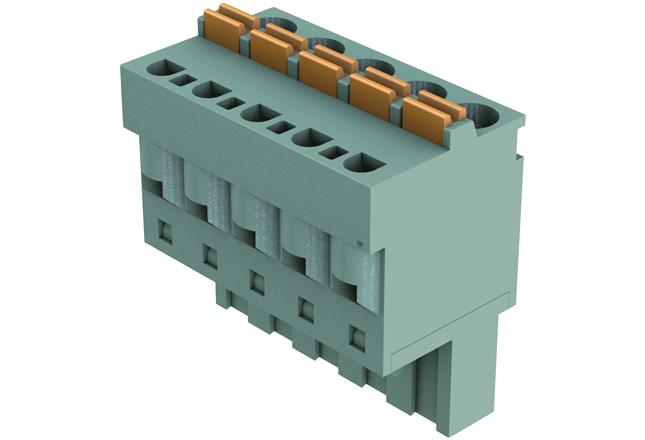

14310317102000 - The har-flexicon® Connector in Green offers efficient PCB to cable connectivity with its Push-in-spring-cage termination method. Designed for reliable performance, it features a straight mount angle and is crafted from durable Nylon housing material. With a maximum operating temperature of 110°C and a UL 94V-0 flammability rating, it ensures safety and longevity. Rated for 12A current and 250V voltage, this connector accommodates wire sizes ranging from 30 to 12 AWG, making it versatile for various applications. The Copper Alloy contacts with Tin plating guarantee optimal conductivity, while the 5.08mm pitch and 3 contacts provide connectivity flexibility. Ideal for use in high-quality PCB mount terminal blocks, this har-flexicon® Connector is a dependable solution for your connection needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
