| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 14310417102000 |
| Pitch: | 5.08 mm |
| Series: | har-flexicon® |
| Wire Size: | 30 - 12 AWG |
| Mount Angle: | Straight |
| Housing Color: | Green |
| Conductor Size: | 30 - 12 AWG |
| Current Rating: | 12 A |
| Voltage Rating: | 250 V |
| Contact Plating: | Tin |
| Number of Poles: | 4 |
| Contact Material: | Copper Alloy |
| Housing Material: | Nylon |
| Number of Levels: | 1 |
| Termination Method: | Spring Cage |
| Flammability Rating: | UL 94V-0 |
| Insulation Material: | Nylon |
| Maximum Operating Temperature: | 110 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | HRT14310417102000 |
14310417102000
Specifications
Detailed Description

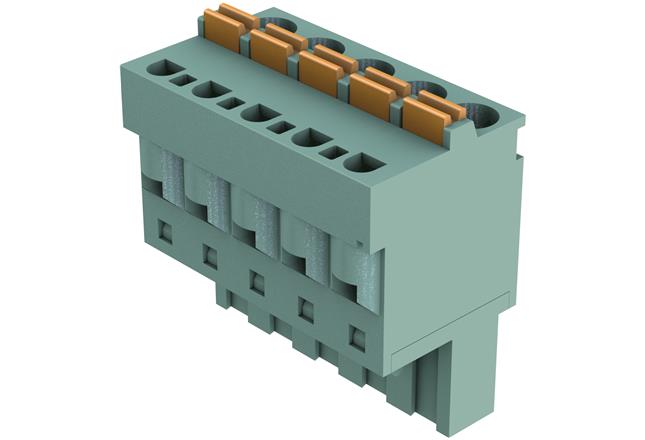

Introducing the 14310417102000, a har-flexicon® Connector designed for efficient PCB to cable connections. Its horizontal orientation and push-in-spring-cage termination method ensure seamless installation. With a rated current of 12A and four contacts, this connector guarantees reliable power transmission. The sturdy Nylon housing in vibrant green offers durability and easy identification. Operating temperature range from -40°C to 110°C, making it suitable for various environments. Each contact is made of high-quality Copper Alloy with Tin plating for excellent conductivity. With a pitch of 5.08mm and wire size compatibility ranging from 30 to 12 AWG, it provides versatility in connectivity. UL 94V-0 flammability rating and 250V voltage rating ensure safety compliance. Perfect for industrial applications requiring secure and efficient terminal block solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
