| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 14310514102000 |
| Series: | har-flexicon® |
| Housing Material: | Nylon |
| Termination Method: | Spring Cage |
| Contact Material: | Copper Alloy |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 110 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 3.5 mm |
| Insulation Material: | Nylon |
| Mount Angle: | Straight |
| Number of Poles: | 5 |
| Number of Levels: | 1 |
| Housing Color: | Green |
| Wire Size: | 30 - 14 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 11 A |
| Voltage Rating: | 150 V |
| Conductor Size: | 30 - 14 AWG |
| SKU: | HRT14310514102000 |
14310514102000
Specifications
Detailed Description

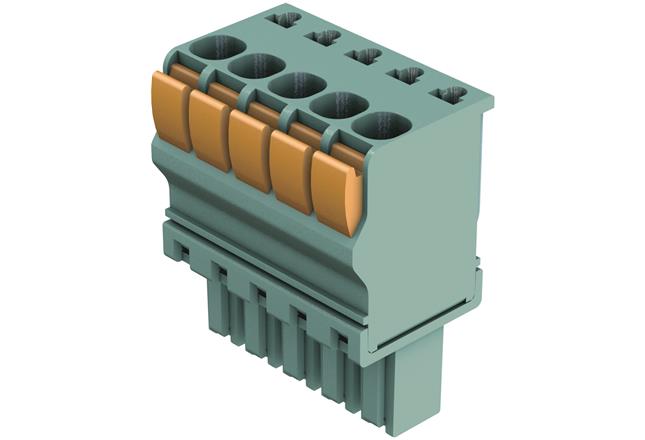

Introducing the har-flexicon® Connector, a versatile and reliable component for your PCB to cable connections. This horizontal connector features a durable Nylon housing in a vibrant green color, ensuring both performance and aesthetics. With push-in-spring-cage termination, installation is quick and easy, making it ideal for a variety of applications. The connector is rated for a maximum current of 11A and can accommodate up to 5 contacts, providing ample connectivity options. Contact plating with Tin ensures optimal conductivity, while the straight mount angle and 3.5mm pitch offer flexibility in PCB layout. With a wide operating temperature range from -40°C to 110°C and UL 94V-0 flammability rating, this connector guarantees reliability in harsh environments. Suitable for wire sizes ranging from 30 to 14 AWG, it meets the highest standards for performance and safety. Upgrade your connectivity solutions with the har-flexicon® Connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
