| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 14310515401000 |
| Series: | har-flexicon® |
| Housing Material: | Nylon |
| Termination Method: | Screw |
| Contact Material: | Copper Alloy |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 110 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 3.81 mm |
| Insulation Material: | Nylon |
| Mount Angle: | Straight |
| Number of Poles: | 5 |
| Number of Levels: | 1 |
| Housing Color: | Green |
| Wire Size: | 30 - 14 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 10 A |
| Voltage Rating: | 150 V |
| Conductor Size: | 30 - 14 AWG |
| SKU: | HRT14310515401000 |
14310515401000
Specifications
Detailed Description

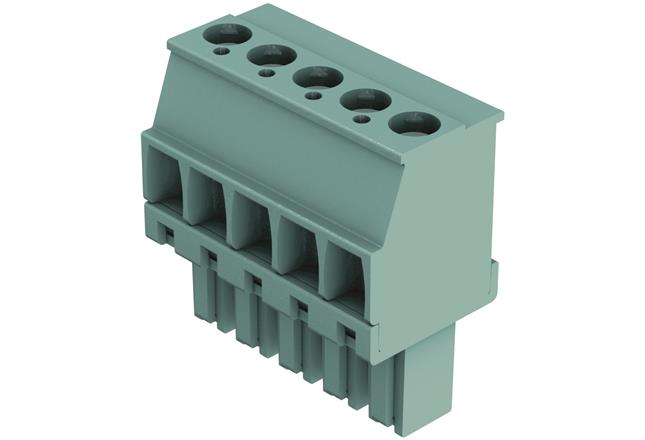

The har-flexicon® Connector is a versatile solution for vertical PCB to cable connections, featuring a durable Nylon housing in a vibrant green color. With a screw termination method, it ensures secure and reliable contact. Rated for a maximum current of 10A, this connector is designed for high-performance applications. With 5 contacts and a pitch of 3.81mm, it offers efficient connectivity. The Copper Alloy contacts with Tin plating guarantee excellent conductivity. Operating temperature ranging from -40°C to 110°C, it is suitable for a wide range of environments. UL 94V-0 rated for flammability, it meets stringent safety standards. Accommodating wire sizes from 30 to 14 AWG, it provides flexibility in installation. Perfect for use in PCB Mount Terminal Blocks, this connector is a essential component for any electronic assembly project.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
