| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 14310614102000 |
| Series: | har-flexicon® |
| Housing Material: | Nylon |
| Termination Method: | Spring Cage |
| Contact Material: | Copper Alloy |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 110 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 3.5 mm |
| Insulation Material: | Nylon |
| Mount Angle: | Straight |
| Number of Poles: | 6 |
| Number of Levels: | 1 |
| Housing Color: | Green |
| Wire Size: | 30 - 14 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 11 A |
| Voltage Rating: | 150 V |
| Conductor Size: | 30 - 14 AWG |
| SKU: | HRT14310614102000 |
14310614102000
Specifications
Detailed Description

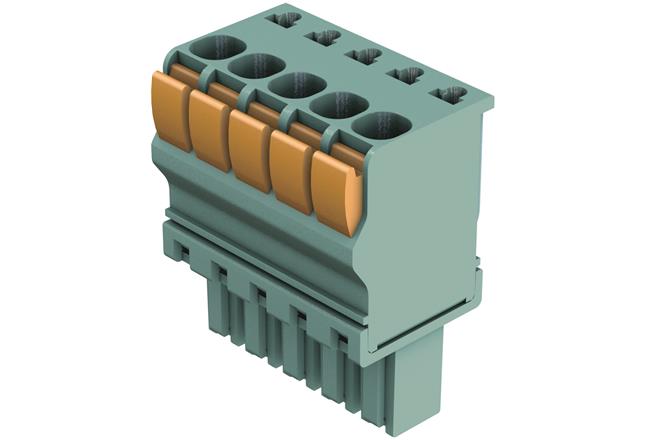

Introducing the har-flexicon® Connector, a versatile solution for horizontal PCB to cable connections. This green connector features a durable PA/PPA housing and utilizes push-in-spring-cage termination for easy installation. With a high rated current of 11A and 6 contacts, it ensures reliable power transmission. The connector is designed for optimal performance, with copper alloy contacts plated in tin for enhanced conductivity. Its nylon housing offers excellent insulation and durability, suitable for a wide range of applications. Meeting UL 94V-0 flammability standards, it guarantees safety and reliability. Compatible with wire sizes ranging from 30 to 14 AWG, this connector is a must-have for any project requiring secure and efficient terminal blocks.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
