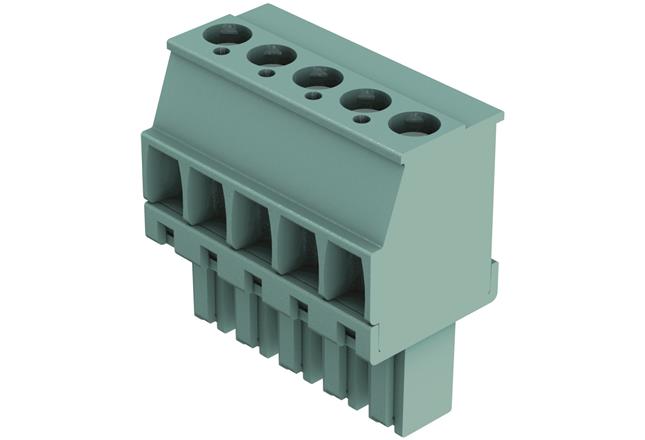

14310715401000

HRT14310715401000
Heilind Number:HRT14310715401000
Manufacturer:HARTING
Manufacturer Number:14310715401000
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

har-flexicon®, Connector; Connector, Vertical; PA / PPA, Green; PCB to cable; Screw termination; Rated current: 10A; Contacts: 7

More >>

Specifications

AttributeValue
Product Category:
Terminal Blocks PCB Mount Terminal Blocks
Manufacturer:HARTING
Manufacturer Part Number:HARTING 14310715401000
Series:har-flexicon®
Housing Material:Nylon
Termination Method:Screw
Contact Material:Copper Alloy
Contact Plating:Tin
Maximum Operating Temperature:110 °C
Minimum Operating Temperature:-40 °C
Pitch:3.81 mm
Insulation Material:Nylon
Mount Angle:Straight
Number of Poles:7
Number of Levels:1
Housing Color:Green
Wire Size:30 - 14 AWG
Flammability Rating:UL 94V-0
Current Rating:10 A
Voltage Rating:150 V
Conductor Size:30 - 14 AWG
Part Aliases:
SKU:HRT14310715401000

Detailed Description

The har-flexicon® Connector is a versatile and reliable solution for vertical PCB to cable connections. With a housing made of durable Nylon in a vibrant green color, this connector offers secure screw termination for easy installation. It is designed to handle a maximum operating temperature of 110°C and a minimum of -40°C, ensuring performance in various environments. Featuring 7 contacts with copper alloy construction and tin plating, it guarantees efficient conductivity. The 3.81mm pitch and straight mount angle make it suitable for a wide range of applications. UL 94V-0 rated for flammability, it meets stringent safety standards. With a current rating of 10A and voltage rating of 150V, it is ideal for power transmission. Compatible with wire sizes ranging from 30 to 14 AWG, it offers flexibility in connectivity. Perfect for industrial and electronic applications, the har-flexicon® Connector is a dependable choice for your connectivity needs.
