| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 14310914102000 |
| Series: | har-flexicon® |
| Housing Material: | Nylon |
| Termination Method: | Spring Cage |
| Contact Material: | Copper Alloy |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 110 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 3.5 mm |
| Insulation Material: | Nylon |
| Mount Angle: | Straight |
| Number of Poles: | 9 |
| Number of Levels: | 1 |
| Housing Color: | Green |
| Wire Size: | 30 - 14 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 11 A |
| Voltage Rating: | 150 V |
| Conductor Size: | 30 - 14 AWG |
| SKU: | HRT14310914102000 |
14310914102000
Specifications
Detailed Description

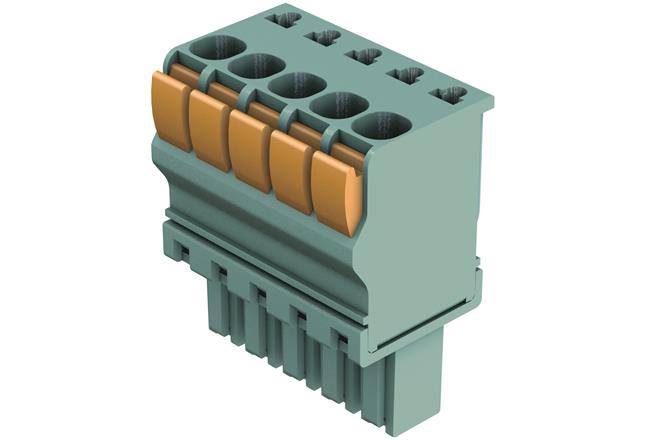

Introducing the har-flexicon® Connector, a versatile and efficient solution for horizontal PCB to cable connections. With a compact design and push-in-spring-cage termination, installation is quick and easy. The green PA/PPA housing, made of durable nylon, ensures reliable performance even in harsh environments. Rated for a current of 11A, this connector features nine contacts, each with copper alloy construction and tin plating for excellent conductivity. Operating temperature ranges from -40°C to 110°C, meeting the demands of various applications. With a pitch of 3.5mm and straight mount angle, it offers flexibility in layout design. UL 94V-0 rated for flammability, with a voltage rating of 150V, it guarantees safety and compliance. Suitable for wire sizes ranging from 30 to 14 AWG, this terminal block is a dependable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
