14311014106000

HRT14311014106000
Heilind Number:HRT14311014106000
Manufacturer:HARTING
Manufacturer Number:14311014106000
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

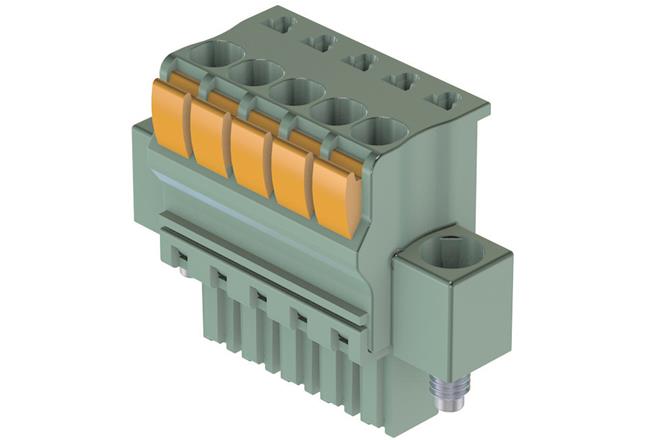

har-flexicon®, Connector; Connector, Horizontal; PA / PPA, Green; PCB to cable; Push-in-spring-cage termination; Rated current: 11A; Contacts: 10

More >>

Specifications

AttributeValue
Product Category:
Terminal Blocks PCB Mount Terminal Blocks
Manufacturer:HARTING
Manufacturer Part Number:HARTING 14311014106000
Pitch:3.5 mm
Series:har-flexicon®
Wire Size:30 - 14 AWG
Mount Angle:Straight
Housing Color:Green
Conductor Size:30 - 14 AWG
Current Rating:11 A
Voltage Rating:150 V
Contact Plating:Tin
Number of Poles:10
Contact Material:Copper Alloy
Housing Material:Nylon
Number of Levels:1
Termination Method:Spring Cage
Flammability Rating:UL 94V-0
Insulation Material:Nylon
Maximum Operating Temperature:110 °C
Minimum Operating Temperature:-40 °C
Part Aliases:
SKU:HRT14311014106000

Detailed Description

The har-flexicon® Connector 14311014106000 is a reliable and efficient solution for horizontal PCB to cable connections. With a housing made of durable Nylon in a vibrant green color, this connector offers secure termination through its push-in spring-cage design. It is suitable for a wide range of applications with a rated current of 11A and 10 contacts. The contact material is copper alloy with tin plating, ensuring excellent conductivity. Operating temperature ranges from -40°C to 110°C, meeting stringent industry standards. Its 3.5mm pitch and straight mount angle make it easy to integrate into various systems. This connector is UL 94V-0 rated for flammability and can accommodate wire sizes ranging from 30 to 14 AWG. With a voltage rating of 150V, it guarantees safe and reliable performance. Trusted for its quality and performance, the har-flexicon® Connector 14311014106000 is an essential component for your connectivity needs.
