14311015102000

HRT14311015102000
Heilind Number:HRT14311015102000
Manufacturer:HARTING
Manufacturer Number:14311015102000
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

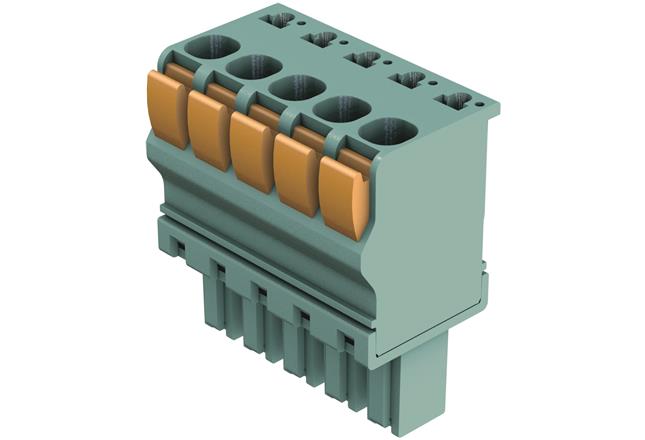

har-flexicon®, Connector; Connector, Horizontal; PA / PPA, Green; PCB to cable; Push-in-spring-cage termination; Rated current: 11A; Contacts: 10

More >>

Specifications

AttributeValue
Product Category:
Terminal Blocks PCB Mount Terminal Blocks
Manufacturer:HARTING
Manufacturer Part Number:HARTING 14311015102000
Pitch:3.81 mm
Series:har-flexicon®
Wire Size:30 - 14 AWG
Mount Angle:Straight
Housing Color:Green
Conductor Size:30 - 14 AWG
Current Rating:11 A
Voltage Rating:150 V
Contact Plating:Tin
Number of Poles:10
Contact Material:Copper Alloy
Housing Material:Nylon
Number of Levels:1
Termination Method:Spring Cage
Flammability Rating:UL 94V-0
Insulation Material:Nylon
Maximum Operating Temperature:110 °C
Minimum Operating Temperature:-40 °C
Part Aliases:
SKU:HRT14311015102000

Detailed Description

The har-flexicon® Connector, SKU 14311015102000, is a versatile and high-performance solution for horizontal PCB to cable connections. Featuring a durable Nylon housing in a vibrant green color, this connector ensures reliable and secure contact in various applications. With a push-in-spring-cage termination method and 10 copper alloy contacts plated with tin, it offers easy installation and excellent conductivity. Rated for a current of 11A and a voltage of 150V, it can accommodate wire sizes ranging from 30 to 14 AWG. Its UL 94V-0 flammability rating guarantees safety and compliance with industry standards. Suitable for use in harsh environments, this connector operates smoothly in temperatures ranging from -40°C to 110°C. Perfect for PCB mount terminal blocks, it is a must-have component for your connectivity needs.
