| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 14311214102000 |
| Series: | har-flexicon® |
| Housing Material: | Nylon |
| Termination Method: | Spring Cage |
| Contact Material: | Copper Alloy |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 110 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 3.5 mm |
| Insulation Material: | Nylon |
| Mount Angle: | Straight |
| Number of Poles: | 12 |
| Number of Levels: | 1 |
| Housing Color: | Green |
| Wire Size: | 30 - 14 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 11 A |
| Voltage Rating: | 150 V |
| Conductor Size: | 30 - 14 AWG |
| SKU: | HRT14311214102000 |
14311214102000
Specifications
Detailed Description

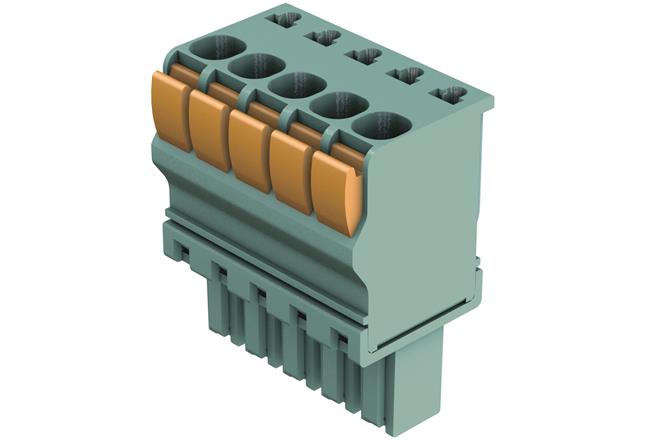

Introducing the har-flexicon® Connector, a versatile and durable solution for your PCB to cable connections. With its push-in-spring-cage termination method, installation is quick and easy. The green PA/PPA housing is constructed of high-quality nylon, ensuring reliable performance in a wide range of operating temperatures from -40°C to 110°C. Rated for 11A current and 150V voltage, this connector is suitable for various applications. Featuring 12 contacts arranged in a straight orientation with a 3.5mm pitch, it offers efficient connectivity. The copper alloy contacts with tin plating provide excellent conductivity and corrosion resistance. UL 94V-0 rated for flammability, rest assured of its safety. Compatible with wire sizes ranging from 30 to 14 AWG, it offers flexibility in design. Whether in industrial machinery or consumer electronics, the har-flexicon® Connector is the perfect choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
