| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 14311517102000 |
| Series: | har-flexicon® |
| Housing Material: | Nylon |
| Termination Method: | Spring Cage |
| Contact Material: | Copper Alloy |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 110 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 5.08 mm |
| Insulation Material: | Nylon |
| Mount Angle: | Straight |
| Number of Poles: | 15 |
| Number of Levels: | 1 |
| Housing Color: | Green |
| Wire Size: | 30 - 12 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 12 A |
| Voltage Rating: | 250 V |
| Conductor Size: | 30 - 12 AWG |
| SKU: | HRT14311517102000 |
14311517102000
Specifications
Detailed Description

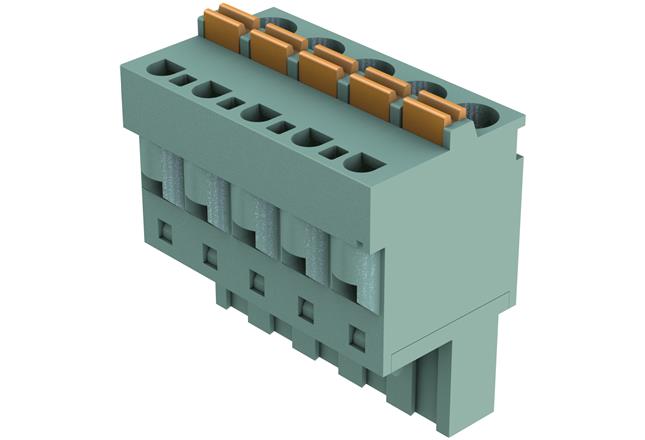

Introducing the har-flexicon® Connector, a reliable and efficient solution for horizontal PCB to cable connections. This green connector features a robust PA/PPA housing and push-in-spring-cage termination, ensuring secure and easy installation. With a rated current of 12A and 15 contacts, it is suitable for a variety of applications. The housing, made of durable nylon, offers excellent insulation and protection. Its straight mount angle and 5.08mm pitch make it versatile for different setups. Meeting UL 94V-0 flammability standards, this connector guarantees safety and reliability. Compatible with wire sizes ranging from 30 to 12 AWG, it accommodates a wide range of conductor sizes. Whether for industrial or commercial use, the har-flexicon® Connector is a top choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
