| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15041202401000 |
| Color: | Black |
| Pitch: | 0.8 mm |
| Series: | har-flex® |
| Mating Cycles: | 200 cycle |
| Number of Rows: | 2 |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Liquid Crystal Polymer |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Part Aliases: | |
| SKU: | HRT15041202401000 |
15041202401000
| Heilind Number: | HRT15041202401000 |
| Manufacturer: | HARTING |
| Manufacturer Number: | 15041202401000 |
| Datasheet: | Datasheet |
| ECAD Model: | |
Specifications
Detailed Description

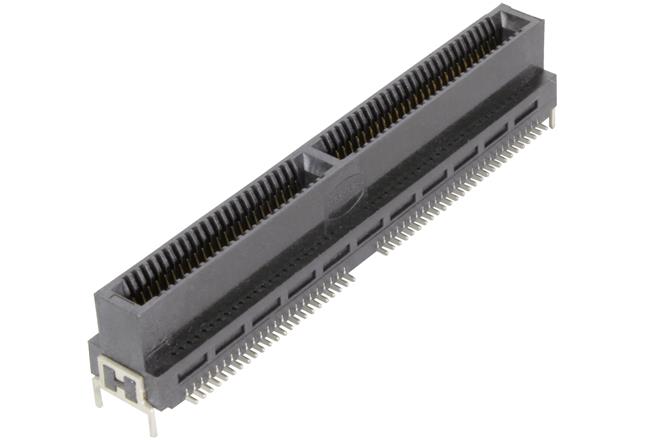

Introducing the 15041202401000, a high-performance har-flex® connector designed for seamless board-to-board and card edge connections in electronic systems. With a sleek black housing made of Liquid Crystal Polymer, this connector offers durability and reliability in demanding environments. Featuring two rows of solder termination, each contact is crafted from Copper Alloy with Tin Over Nickel plating, ensuring excellent conductivity and corrosion resistance. Operating between a wide temperature range of -55°C to 125°C, it is suitable for both standard and extreme conditions. With a pitch of 0.8mm and 200 mating cycles, this connector is perfect for high-density applications where space is a premium. The 15041202401000 is a vital component in ensuring secure and efficient data transmission, making it an essential choice for your PCB connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| HARTING: | 15041202401000 |
| Other Names: | |
