| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15110322401000 |
| Color: | Black |
| Pitch: | 1.27 mm |
| Gender: | Male |
| Series: | har-flex® |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Number of Rows: | 2 |
| Voltage Rating: | 0.5 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 32 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT15110322401000 |
15110322401000
Specifications
Detailed Description

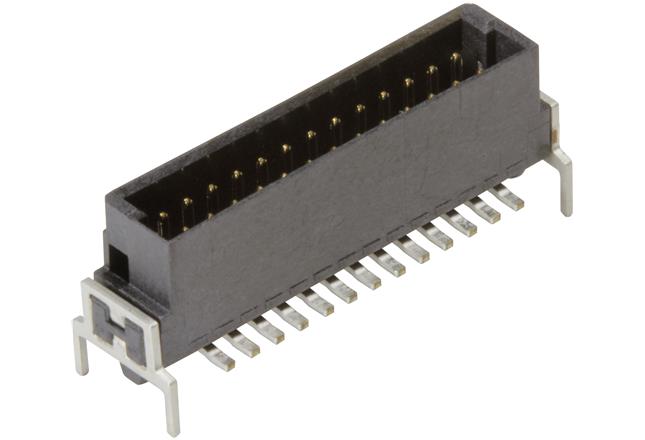

Introducing the har-flex® Connector, a versatile and reliable solution for connecting motherboards to daughtercards, mezzanines, and PCBs to cables. This male connector features a durable Liquid Crystal Polymer housing and straight, Through-Hole Reflow (THR) termination for secure attachment. With 32 contacts arranged in 2 rows on a 1.27mm pitch, it offers high-density connectivity in a compact form. The copper alloy contacts are plated with Tin Over Nickel and Noble Metal Over Nickel for enhanced conductivity and corrosion resistance. Operating within a wide temperature range of -55°C to 125°C, this connector is suitable for various industrial applications. It has a 500-cycle mating lifespan and meets UL 94V-0 flammability standards, ensuring safety and durability. RoHS compliant and rated for 0.5kV, the har-flex® Connector is a trusted choice for board-to-board, mezzanine, and stacking connections in electronic assemblies.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
