| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15120062601000 |
| Color: | Black |
| Series: | har-flex® |
| Gender: | Male |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 6 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 1.27 mm |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Voltage Rating: | 0.5 kV |
| SKU: | HRT15120062601000 |
15120062601000
Specifications
Detailed Description

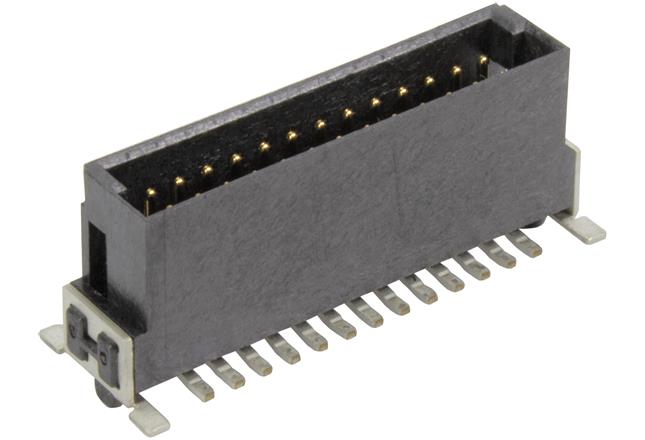

The har-flex® Male Connector is a versatile and reliable solution for connecting motherboards to daughtercards, mezzanines, and PCBs to cables. With a compact design and reflow soldering termination, this connector ensures secure and efficient connections. Made of high-quality Liquid Crystal Polymer, it offers durability and excellent performance in a wide range of operating temperatures from -55°C to 125°C. Featuring 6 contacts arranged in 2 rows with a pitch of 1.27mm, it allows for high-density and space-saving PCB layouts. The contacts are made of Copper Alloy with Tin Over Nickel plating, ensuring low contact resistance and long-lasting reliability. With a voltage rating of 0.5kV and UL 94V-0 flammability rating, it meets stringent safety standards. RoHS compliant and with a mating cycle of 500, this connector is suitable for various industrial applications. Trust the har-flex® Male Connector for seamless and efficient board-to-board connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
