| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15130202601000 |
| Color: | Black |
| Pitch: | 1.27 mm |
| Gender: | Male |
| Series: | har-flex® |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Number of Rows: | 2 |
| Voltage Rating: | 0.5 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 20 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT15130202601000 |
15130202601000
| Heilind Number: | HRT15130202601000 |
| Manufacturer: | HARTING |
| Manufacturer Number: | 15130202601000 |
| Datasheet: | Datasheet |
| ECAD Model: | |
Specifications
Detailed Description

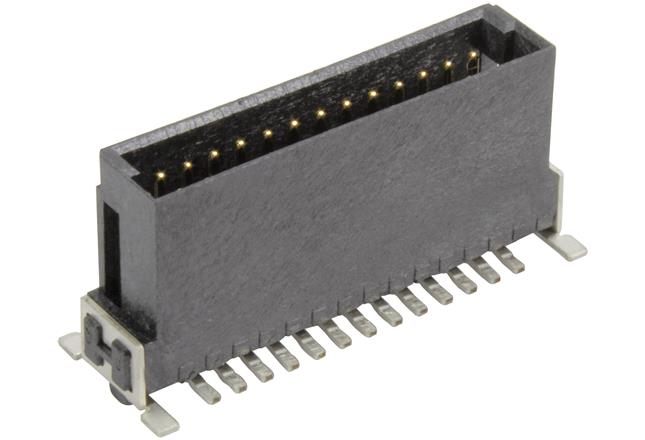

Introducing the har-flex® Black Male PCB Connector, SKU 15130202601000. Designed for high reliability in board-to-board and mezzanine applications, this connector features a durable Liquid Crystal Polymer housing and solder termination method for secure attachment. With 20 contacts in 2 rows, it offers seamless connectivity with a pitch of 1.27mm. The Copper Alloy contacts are plated with Tin over Nickel and Noble Metal for optimal conductivity and corrosion resistance. Operating in temperatures ranging from -55°C to 125°C, it ensures reliable performance in diverse environments. With a voltage rating of 0.5kV and UL 94V-0 flammability rating, it meets stringent safety standards. RoHS compliant and capable of 500 mating cycles, this connector is ideal for demanding industrial and electronic applications.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
