| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15130262601000 |
| Color: | Black |
| Pitch: | 1.27 mm |
| Gender: | Male |
| Series: | har-flex® |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Number of Rows: | 2 |
| Voltage Rating: | 0.5 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 26 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT15130262601000 |
15130262601000
Specifications
Detailed Description

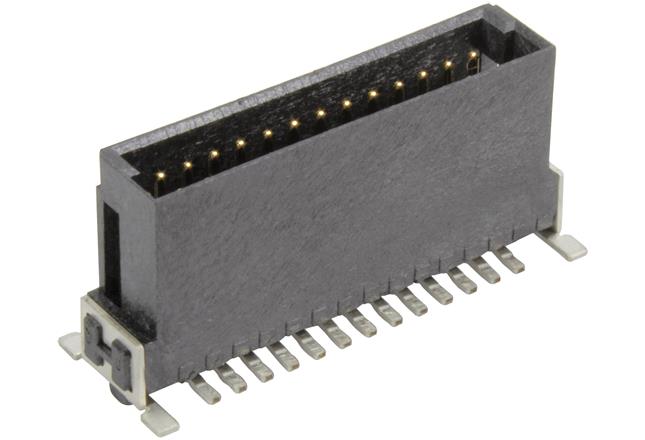

The HAR-FLEX STRAIGHT MALE 4.85MM connector, with SKU 15130262601000, is a standout component in the har-flex® series, designed for high-performance board-to-board PCB connections. Featuring a sleek black housing made of Liquid Crystal Polymer, this male connector boasts 26 contacts arranged in 2 rows, with a 1.27mm pitch for precise connectivity. Its solder termination method ensures secure attachment, while the Copper Alloy contacts with Tin Over Nickel and Noble Metal Over Nickel plating guarantee optimal conductivity and durability. With a wide operating temperature range of -55°C to 125°C, and UL 94V-0 flammability rating, it is suitable for diverse applications. RoHS compliant and rated for 0.5kV, this connector is not only reliable but also environmentally friendly. Trusted for up to 500 mating cycles, it excels in demanding environments where quality and performance are paramount.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
