| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15130682601000 |
| Color: | Black |
| Pitch: | 1.27 mm |
| Gender: | Male |
| Series: | har-flex® |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Number of Rows: | 2 |
| Voltage Rating: | 0.5 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 68 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT15130682601000 |
15130682601000
Specifications
Detailed Description

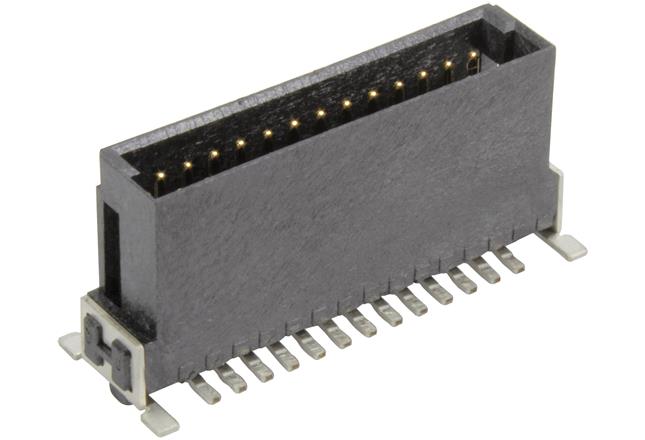

Introducing the 15130682601000 har-flex® male connector, designed for high-performance board-to-board PCB connections. With a sleek black housing made of liquid crystal polymer, this connector boasts 68 contacts arranged in two rows, ensuring reliable signal transmission. Featuring a solder termination method and copper alloy contacts plated with tin over nickel, it guarantees secure and durable connections. Operating in temperatures ranging from -55°C to 125°C, it is suitable for a wide range of applications. With a pitch of 1.27mm and straight mount angle, it offers easy integration into your PCB designs. Certified with UL 94V-0 flammability rating and a voltage rating of 0.5 kV, it meets stringent safety standards. Trust in the 15130682601000 for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
