| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15150182601000 |
| Color: | Black |
| Pitch: | 1.27 mm |
| Gender: | Male |
| Series: | har-flex® |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Number of Rows: | 2 |
| Voltage Rating: | 0.5 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 18 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT15150182601000 |
15150182601000
Specifications
Detailed Description

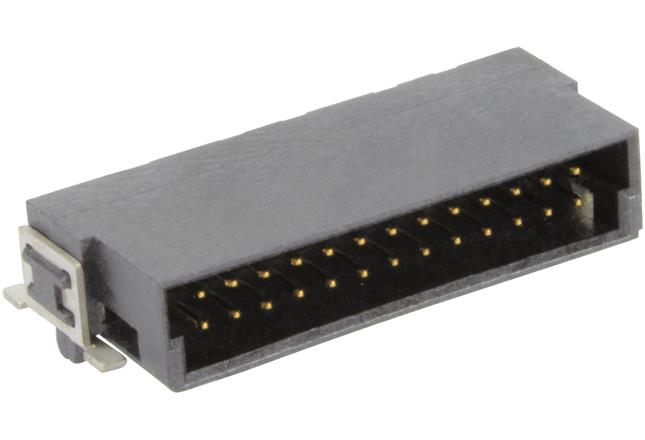

Introducing the HAR-FLEX ANGLED MALE connector, featuring 18 pins in a right angle mount design with a pitch of 1.27mm. This black connector, part of the har-flex® series, is ideal for board-to-board PCB connections. Made with durable Liquid Crystal Polymer housing material, it ensures reliable performance in a wide range of operating temperatures from -55°C to 125°C. The copper alloy contacts are plated with tin over nickel and noble metal, guaranteeing excellent conductivity and corrosion resistance. With a high mating cycle of 500, this connector is built to last. In compliance with RoHS standards, it is environmentally friendly and safe for use. Perfect for applications requiring high reliability and durability, the HAR-FLEX ANGLED MALE connector is a top choice for demanding electronic setups.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
