| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15150802401000 |
| Color: | Black |
| Pitch: | 1.27 mm |
| Gender: | Male |
| Series: | har-flex® |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Number of Rows: | 2 |
| Voltage Rating: | 0.5 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 80 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT15150802401000 |
15150802401000
Specifications
Detailed Description

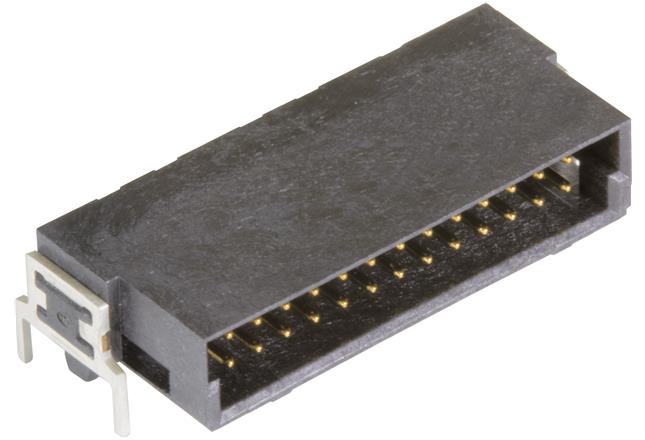

Introducing the har-flex® Connector, a versatile and essential component for seamless motherboard to daughtercard, PCB to cable connections. This male connector features a durable Liquid Crystal Polymer housing and boasts 80 contacts for efficient data transfer. With a compact and angled design, it ensures a secure and space-saving fit in any application. Solder termination method guarantees reliable performance, while Copper Alloy contacts with Tin Over Nickel and Noble Metal plating ensure optimal conductivity. Operating temperature range from -55°C to 125°C and UL 94V-0 flammability rating make it suitable for a wide range of environments. With a pitch of 1.27mm and right-angle mount, it offers flexibility in installation. Trust the har-flex® Connector for high-quality board-to-board PCB connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
