| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15210242601000 |
| Color: | Black |
| Series: | har-flex® |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 24 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 1.27 mm |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2.4 - 3.3 A |
| Voltage Rating: | 0.5 kV |
| SKU: | HRT15210242601000 |
15210242601000
Specifications
Detailed Description

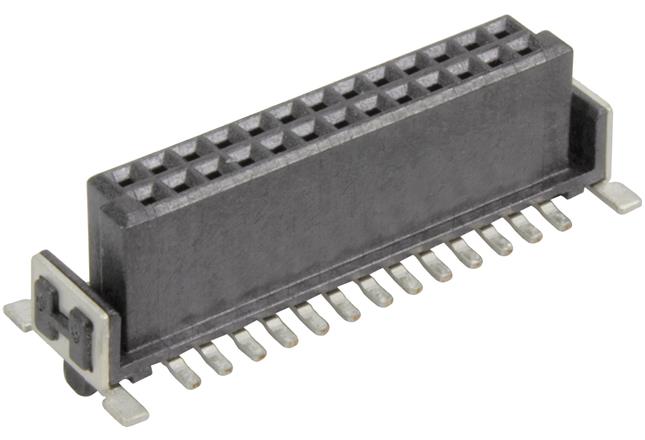

The har-flex® Female Connector ( 15210242601000) is a versatile and reliable solution for connecting a motherboard to a daughtercard or mezzanine board. With a straight, solder termination method and 24 contacts arranged in 2 rows with a pitch of 1.27mm, this connector ensures secure and stable connectivity. Made of durable Liquid Crystal Polymer housing with copper alloy contacts plated with Tin over Nickel and Noble Metal over Nickel, it offers excellent conductivity and longevity. Operating efficiently in temperatures ranging from -55°C to 125°C, it is suitable for a wide range of applications. With a current rating of 2.4-3.3A and voltage rating of 0.5kV, it meets high-performance standards. UL 94V-0 flammability rating guarantees safety. Designed for 500 mating cycles, it is a cost-effective and dependable choice for board-to-board PCB connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
