| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15210682601000 |
| Color: | Black |
| Pitch: | 1.27 mm |
| Gender: | Female |
| Series: | har-flex® |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 2.2 - 2.4 A |
| Number of Rows: | 2 |
| Voltage Rating: | 0.5 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 68 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT15210682601000 |
15210682601000
Specifications
Detailed Description

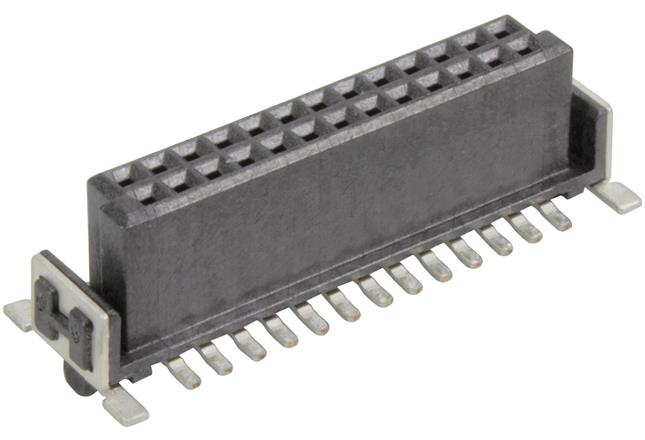

The har-flex® Connector is a crucial component for seamless board-to-board and mezzanine connections in electronic devices. Featuring a female connector with 68 contacts arranged in two rows, this connector ensures reliable data and power transmission. Made from high-quality Liquid Crystal Polymer, it offers excellent durability and heat resistance, with a wide operating temperature range from -55°C to 125°C. The contacts, composed of Copper Alloy and plated with Tin Over Nickel, guarantee efficient conductivity. With a pitch of 1.27mm and straight mount angle, it allows for easy installation on PCBs. RoHS compliant and UL 94V-0 rated for safety, this connector is ideal for demanding applications in various industries. Trust the har-flex® Connector for high-performance connectivity solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
