| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15210902601000 |
| Color: | Black |
| Series: | har-flex® |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 90 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 1.27 mm |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2.1 - 2.2 A |
| Voltage Rating: | 0.5 kV |
| SKU: | HRT15210902601000 |
15210902601000
Specifications
Detailed Description

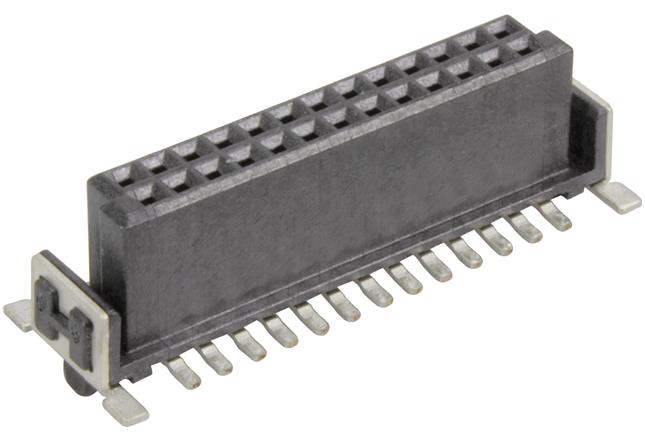

The har-flex® Connector is a reliable solution for connecting motherboards to daughter cards in electronic devices. Featuring a black Liquid Crystal Polymer housing, this female connector offers secure attachment with reflow soldering termination. With 90 straight contacts in a 1.27mm pitch, it ensures efficient signal transmission. Crafted from Copper Alloy with Tin Over Nickel and Noble Metal Over Nickel plating, it guarantees durability and conductivity. Operating between -55 °C and 125 °C, it is suitable for a wide range of environments. With a current rating of 2.1 - 2.2 A and voltage rating of 0.5 kV, it meets high-performance requirements. UL 94V-0 rated for flammability, it ensures safety in use. Perfect for board-to-board connections, the har-flex® Connector is a dependable choice for demanding applications.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
