15220262601000

HRT15220262601000
Heilind Number:HRT15220262601000
Manufacturer:HARTING
Manufacturer Number:15220262601000
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

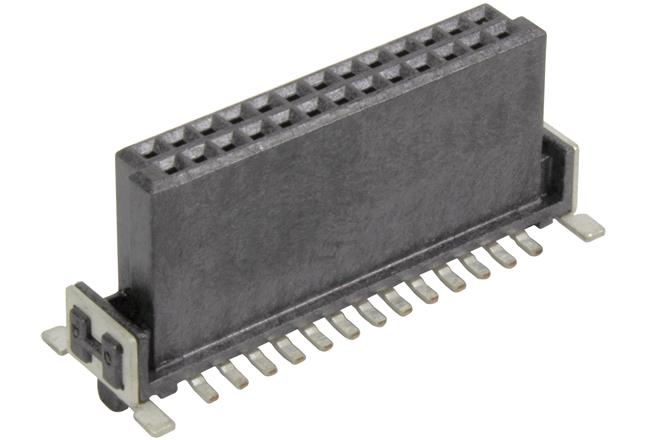

har-flex®, Connector; Female connector; LCP; Motherboard to daughtercard, Mezzanine; Reflow soldering termination (SMT); Contacts: 26; Straight

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:HARTING
Manufacturer Part Number:HARTING 15220262601000
Color:Black
Series:har-flex®
Gender:Female
Housing Material:Liquid Crystal Polymer
Number of Contacts:26
Number of Rows:2
Termination Method:Solder
Contact Material:Copper Alloy
Contact Plating:Noble Metal Over Nickel, Tin Over Nickel
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
Pitch:1.27 mm
Mount Angle:Straight
Mating Cycles:500 cycle
Flammability Rating:UL 94V-0
Current Rating:2.4 - 3.3 A
Voltage Rating:0.5 kV
SKU:HRT15220262601000

Detailed Description

The har-flex® Connector is a versatile female connector designed for seamless motherboard to daughtercard or mezzanine connections. With a reflow soldering termination method, installation is efficient and reliable. Featuring 26 contacts in a straight configuration, this connector ensures secure and stable connectivity. Crafted from high-quality Liquid Crystal Polymer, it offers durability and performance in a sleek black housing. With a wide operating temperature range from -55°C to 125°C, it is suitable for various environments. RoHS compliant and with a voltage rating of 0.5kV, it meets international standards for safety and quality. Perfect for board-to-board PCB applications, the har-flex® Connector guarantees exceptional functionality in every use.
