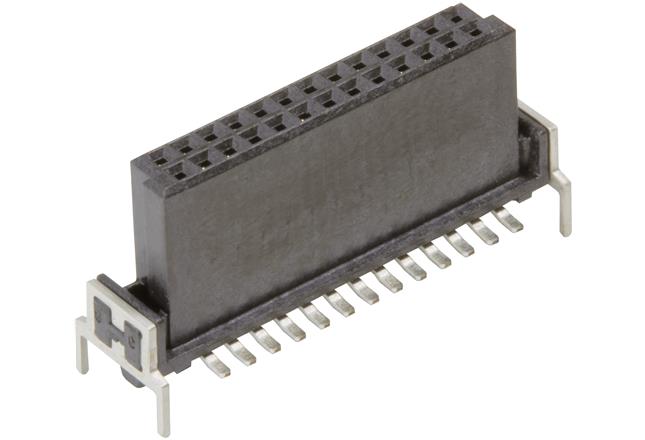

15220802401000

HRT15220802401000
Heilind Number:HRT15220802401000
Manufacturer:HARTING
Manufacturer Number:15220802401000
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

har-flex®, Connector; Female connector; LCP; Motherboard to daughtercard, Mezzanine; THR connection; Contacts: 80; Straight

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:HARTING
Manufacturer Part Number:HARTING 15220802401000
Color:Black
Series:har-flex®
Gender:Female
Housing Material:Liquid Crystal Polymer
Number of Contacts:80
Number of Rows:2
Termination Method:Solder
Contact Material:Copper Alloy
Contact Plating:Noble Metal Over Nickel, Tin Over Nickel
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
Pitch:1.27 mm
Mount Angle:Straight
Mating Cycles:500 cycle
Flammability Rating:UL 94V-0
Voltage Rating:0.5 kV
Part Aliases:
SKU:HRT15220802401000

Detailed Description

The har-flex® Connector is a high-quality, female connector designed for seamless motherboard to daughtercard or mezzanine board connections. Featuring a durable Liquid Crystal Polymer housing, this connector ensures reliable performance in various applications. With 80 contacts arranged in two rows, it allows for efficient data transfer. The straight termination method with solder contacts guarantees secure connectivity. Made of Copper Alloy with Tin Over Nickel and Noble Metal Over Nickel plating, it offers excellent conductivity and corrosion resistance. Operating within a wide temperature range from -55°C to 125°C, it is suitable for harsh environments. With a pitch of 1.27mm and UL 94V-0 flammability rating, it meets industry standards for safety and performance. Perfect for board to board connections in electronic devices, the har-flex® Connector is a dependable choice for your connectivity needs.
