| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15230322601000 |
| Color: | Black |
| Series: | har-flex® |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 32 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 1.27 mm |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Voltage Rating: | 0.5 kV |
| SKU: | HRT15230322601000 |
15230322601000
Specifications
Detailed Description

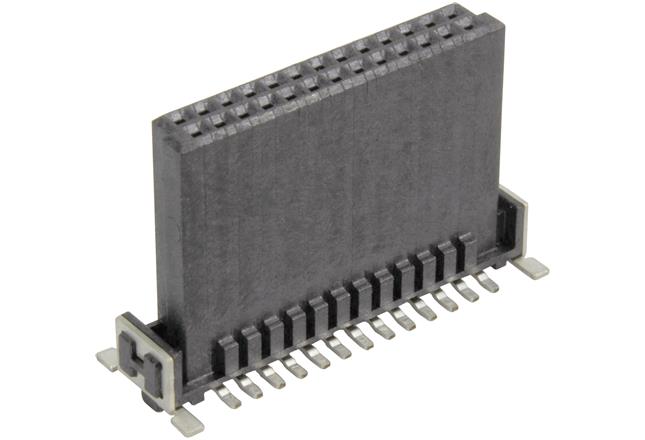

Introducing the HAR-FLEX STRAIGHT FEMALE 13.65 connector, featuring a sleek black design and a robust construction made of Liquid Crystal Polymer. With 32 contacts arranged in 2 rows, this connector ensures efficient connectivity on your PCB. The solder termination method guarantees secure attachment, while the copper alloy contacts with tin over nickel and noble metal plating ensure reliable signal transmission. Operating smoothly in temperatures ranging from -55°C to 125°C, this connector is suitable for a wide range of applications. With a pitch of 1.27mm and a straight mount angle, it offers easy installation on your board. Tested for 500 mating cycles and boasting a UL 94V-0 flammability rating, it prioritizes durability and safety. Whether you're working on high-reliability projects or everyday electronics, the HAR-FLEX 13.65 connector is the perfect choice for seamless connectivity.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
