| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15230682601000 |
| Color: | Black |
| Pitch: | 1.27 mm |
| Gender: | Female |
| Series: | har-flex® |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Number of Rows: | 2 |
| Voltage Rating: | 0.5 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 68 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT15230682601000 |

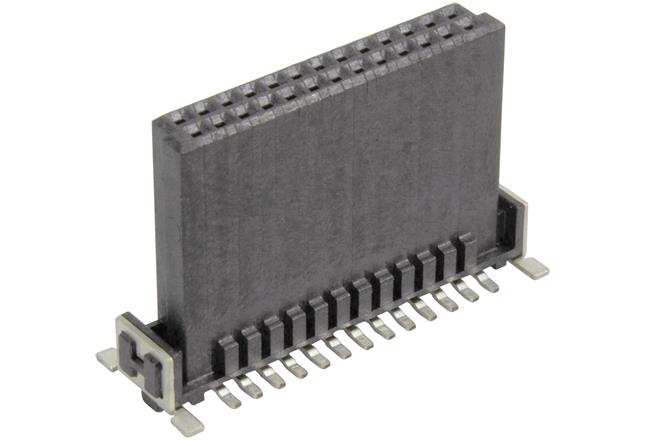

15230682601000
Specifications
Detailed Description
Introducing the 15230682601000, a high-performance har-flex® series female connector designed for seamless board-to-board PCB connections. Featuring a sleek black housing made of Liquid Crystal Polymer, this connector boasts 68 contacts arranged in 2 rows with a pitch of 1.27mm. The termination method is solder, ensuring secure and reliable attachment. Contacts are made of copper alloy with tin over nickel and noble metal plating, guaranteeing optimal conductivity. With a wide operating temperature range from -55°C to 125°C, this connector is suitable for harsh environments. It is UL 94V-0 rated for flammability, with a voltage rating of 0.5kV. Ideal for high-density applications, the 15230682601000 offers 500 mating cycles for long-lasting performance. Trust in this connector for your demanding PCB connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
