| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15250062601000 |
| Color: | Black |
| Pitch: | 1.27 mm |
| Gender: | Female |
| Series: | har-flex® |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Number of Rows: | 2 |
| Voltage Rating: | 0.5 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 6 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT15250062601000 |

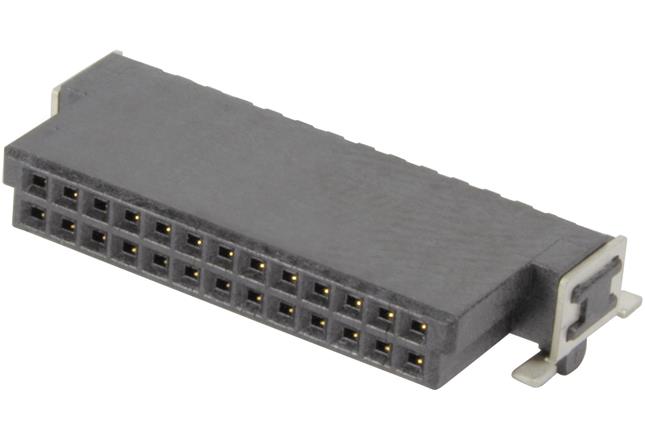

15250062601000
Specifications
Detailed Description
The har-flex® Connector is a versatile solution for connecting motherboards to daughter cards or extender cards with ease. This female connector, featuring a durable black Liquid Crystal Polymer housing, is designed for reflow soldering termination (SMT) with its 6 angled contacts. Constructed with high-quality Copper Alloy contact material plated with Tin Over Nickel and Noble Metal Over Nickel, it ensures reliable performance even in harsh environments. With a pitch of 1.27mm and right-angle mount, it offers flexibility in PCB layout. Meeting UL 94V-0 flammability rating and RoHS compliance, it guarantees safety and environmental responsibility. Operating temperature ranging from -55°C to 125°C and voltage rating of 0.5kV, it is suitable for a wide range of applications. With a mating cycle of 500 cycles, it ensures long-term durability. Perfect for board-to-board connections, this connector is a key component in electronic systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
