| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15250682601000 |
| Color: | Black |
| Series: | har-flex® |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 68 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 1.27 mm |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Voltage Rating: | 0.5 kV |
| SKU: | HRT15250682601000 |
15250682601000
Specifications
Detailed Description

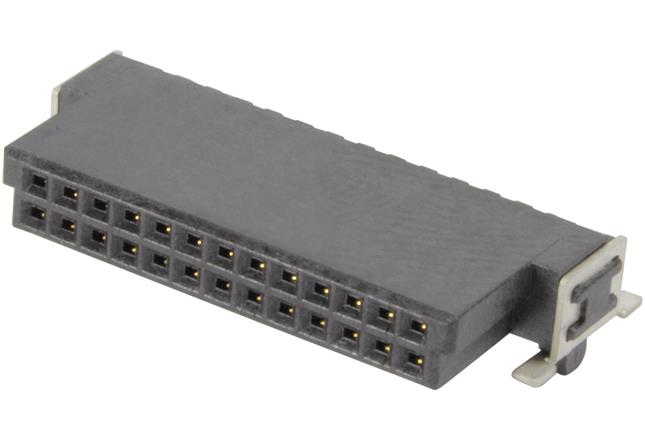

The har-flex® Female Connector, with SKU 15250682601000, is a versatile and reliable solution for connecting motherboards to daughter cards and extender cards. Featuring a black Liquid Crystal Polymer housing, this connector is designed for reflow soldering termination (SMT) with 68 angled contacts. With a pitch of 1.27mm and right-angle mount angle, it offers efficient and space-saving connectivity. Constructed with Copper Alloy contacts plated with Tin over Nickel and Noble Metal over Nickel, it ensures excellent conductivity and durability. With a wide operating temperature range from -55°C to 125°C and a voltage rating of 0.5kV, it is suitable for various applications. RoHS compliant and UL 94V-0 rated, it meets high standards of safety and environmental responsibility. Whether for industrial, commercial, or consumer electronics, the har-flex® Connector guarantees high performance and quality in board-to-board PCB connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
