| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15290162502000 |
| Series: | har-flex® |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 16 |
| Number of Rows: | 2 |
| Termination Method: | IDC |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 0.635 mm, 1.27 mm |
| Mount Angle: | Straight |
| Housing Color: | Black |
| Mating Cycles: | 500 cycle |
| Wire Size: | 30 AWG |
| Performance Level: | Class I |
| Voltage Rating: | 0.5 kV |
| SKU: | HRT15290162502000 |
15290162502000
Specifications
Detailed Description

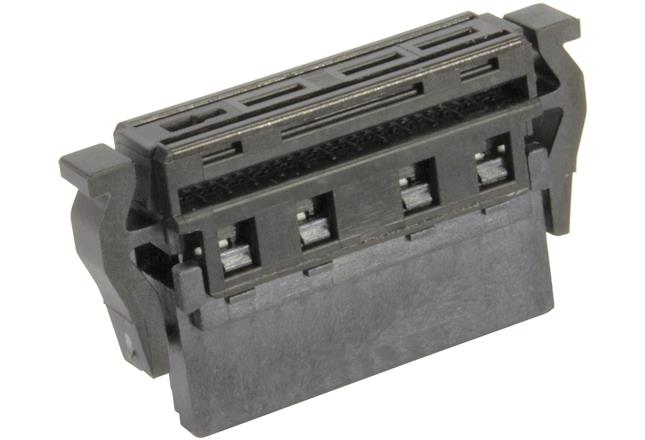

The har-flex® Female Connector offers reliable and efficient PCB to cable connectivity with its 16 straight contacts featuring IDC insulation displacement termination. Constructed with Liquid Crystal Polymer housing, this connector ensures durability and performance in a wide temperature range from -55°C to 125°C. The copper alloy contacts are plated with tin over nickel and noble metal, providing excellent conductivity and corrosion resistance. With a pitch of 1.27mm and 0.635mm, it allows for high-density mounting. Designed for 30 AWG wire size, it is suitable for various applications. With RoHS compliance and a voltage rating of 0.5kV, it meets international quality and safety standards. Perfect for FFC, FPC, and ribbon cable connections, the har-flex® Female Connector is a reliable choice for your electronic projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
