| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15290242501000 |
| Series: | har-flex® |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 24 |
| Number of Rows: | 2 |
| Termination Method: | IDC |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 0.635 mm, 1.27 mm |
| Mount Angle: | Straight |
| Housing Color: | Black |
| Mating Cycles: | 500 cycle |
| Wire Size: | 30 AWG |
| Performance Level: | Class I |
| Voltage Rating: | 0.5 kV |
| SKU: | HRT15290242501000 |
15290242501000
Specifications
Detailed Description

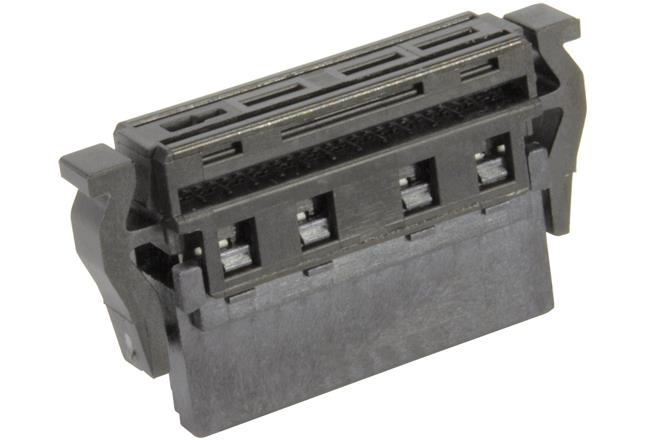

This har-flex® Female Connector offers a reliable solution for connecting PCBs to cables with its IDC insulation displacement termination method. With 24 contacts arranged in two rows, it ensures efficient signal transmission. The Liquid Crystal Polymer housing and Copper Alloy contacts with Tin Over Nickel plating guarantee durability and stable performance even in harsh environments, with a wide operating temperature range from -55°C to 125°C. Featuring a 1.27mm pitch and straight mount angle, it allows for easy installation. Rated for 500 mating cycles, this connector is ideal for applications requiring high reliability. Its 30 AWG wire size and 0.5 kV voltage rating make it suitable for various industrial and commercial uses. Upgrade your connectivity with this Class I har-flex® Connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
