| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15290302501000 |
| Series: | har-flex® |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 30 |
| Number of Rows: | 2 |
| Termination Method: | IDC |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 0.635 mm, 1.27 mm |
| Mount Angle: | Straight |
| Housing Color: | Black |
| Mating Cycles: | 500 cycle |
| Wire Size: | 30 AWG |
| Performance Level: | Class I |
| Voltage Rating: | 0.5 kV |
| SKU: | HRT15290302501000 |
15290302501000
Specifications
Detailed Description

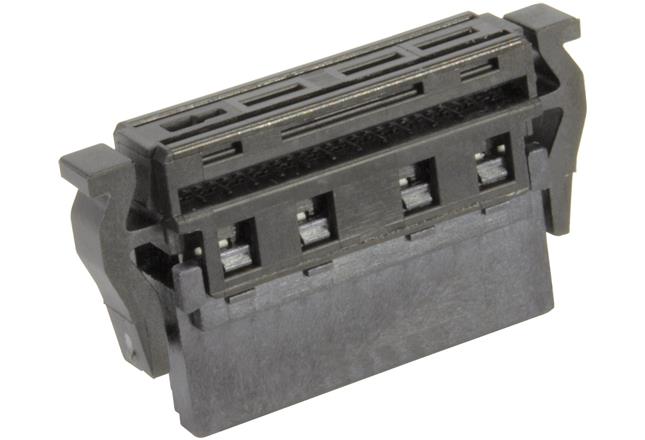

Introducing the har-flex® Female Connector, perfect for seamless PCB to cable connections. This high-quality connector features IDC insulation displacement termination with 30 contacts in a straight layout. Crafted from durable Liquid Crystal Polymer, it ensures reliable performance even in demanding environments. The copper alloy contacts are plated with Tin Over Nickel and Noble Metal Over Nickel for enhanced conductivity and corrosion resistance. With a wide operating temperature range of -55°C to 125°C, it guarantees optimal functionality in any conditions. RoHS compliant and rated for 0.5 kV, this connector is suitable for a variety of applications. Trust the har-flex® Connector for efficient and secure connectivity every time.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
