15290302502000

HRT15290302502000
Heilind Number:HRT15290302502000
Manufacturer:HARTING
Manufacturer Number:15290302502000
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

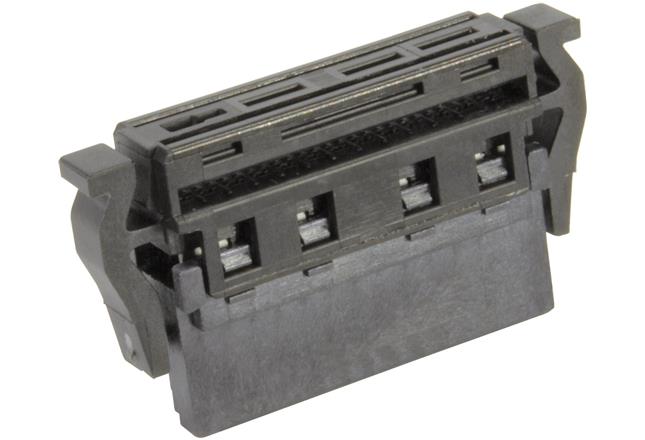

har-flex®, Connector; Female connector; LCP; PCB to cable; IDC insulation displacement termination; Contacts: 30; Straight

More >>

Specifications

AttributeValue
Product Category:
FFC, FPC, Ribbon & IDT Connectors IDC Ribbon Cable Connectors
Manufacturer:HARTING
Manufacturer Part Number:HARTING 15290302502000
Pitch:0.635 mm, 1.27 mm
Gender:Female
Series:har-flex®
Wire Size:30 AWG
Mount Angle:Straight
Housing Color:Black
Mating Cycles:500 cycle
Number of Rows:2
Voltage Rating:0.5 kV
Contact Plating:Noble Metal Over Nickel, Tin Over Nickel
Contact Material:Copper Alloy
Housing Material:Liquid Crystal Polymer
Performance Level:Class I
Number of Contacts:30
Termination Method:IDC
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
SKU:HRT15290302502000

Detailed Description

The har-flex® Connector is a female connector designed for efficient PCB to cable connections. With a durable Liquid Crystal Polymer housing and 30 contacts arranged in two rows, it ensures reliable signal transmission. Featuring IDC insulation displacement termination, installation is quick and straightforward. The contacts, made of Copper Alloy with Tin Over Nickel and Noble Metal Over Nickel plating, guarantee excellent conductivity. Operating in a wide temperature range from -55 °C to 125 °C, this connector is suitable for diverse applications. With a pitch of 1.27 mm and 0.635 mm, it offers flexibility in design. Its straight mount angle and black housing color provide versatility in installation. Rated for 500 mating cycles and compatible with 30 AWG wire, this connector meets Class I performance standards. With a voltage rating of 0.5 kV, it ensures safe and efficient operation. Perfect for use in high-reliability environments, the har-flex® Connector ( 15290302502000) is a dependable solution for your connectivity needs.
