| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15290682501000 |
| Series: | har-flex® |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 68 |
| Number of Rows: | 2 |
| Termination Method: | IDC |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 0.635 mm, 1.27 mm |
| Mount Angle: | Straight |
| Housing Color: | Black |
| Mating Cycles: | 500 cycle |
| Wire Size: | 30 AWG |
| Performance Level: | Class I |
| Voltage Rating: | 0.5 kV |
| SKU: | HRT15290682501000 |
15290682501000
Specifications
Detailed Description

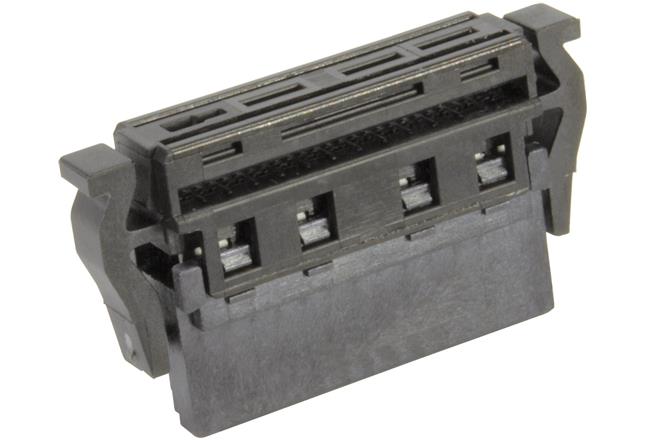

The har-flex® Connector is a female connector designed for seamless integration from PCB to cable, featuring IDC insulation displacement termination for efficient connectivity. With 68 contacts arranged in two rows, this connector ensures reliable data transmission. Crafted from durable Liquid Crystal Polymer, it offers exceptional performance in a wide temperature range from -55°C to 125°C. The contacts, made of Copper Alloy and plated with Tin Over Nickel and Noble Metal Over Nickel, guarantee optimal conductivity. With a pitch of 1.27mm and 0.635mm, it allows for precise mounting. Its black housing and Class I performance level make it suitable for various applications, while meeting RoHS compliance standards. With a voltage rating of 0.5kV and a mating cycle of 500, this connector ensures long-lasting functionality. Perfect for IDC Ribbon Cable applications, the har-flex® Connector is a reliable solution for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
