| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15290802502000 |
| Series: | har-flex® |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 80 |
| Number of Rows: | 2 |
| Termination Method: | IDC |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 0.635 mm, 1.27 mm |
| Mount Angle: | Straight |
| Housing Color: | Black |
| Mating Cycles: | 500 cycle |
| Wire Size: | 30 AWG |
| Performance Level: | Class I |
| Voltage Rating: | 0.5 kV |
| SKU: | HRT15290802502000 |
15290802502000
Specifications
Detailed Description

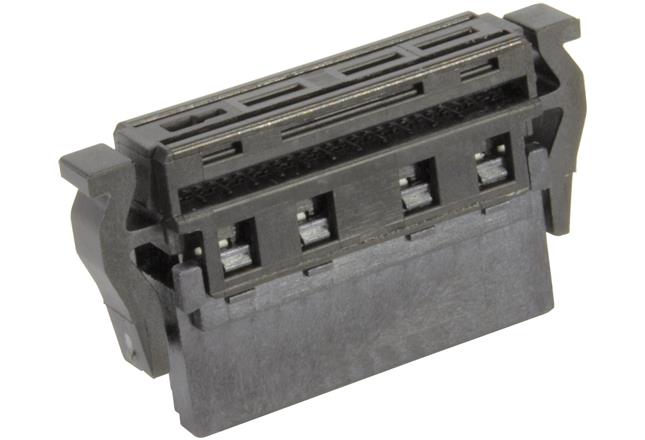

The har-flex® Female Connector offers reliable and efficient connectivity in a compact design for PCB to cable applications. With 80 contacts arranged in two rows, this connector features IDC insulation displacement termination, ensuring secure and durable connections. Constructed with high-quality Liquid Crystal Polymer housing and Copper Alloy contacts plated with Tin Over Nickel, it guarantees excellent performance even in harsh environments, with a wide operating temperature range from -55°C to 125°C. The 1.27mm pitch and Straight mount angle make it easy to integrate into various systems. RoHS compliant and rated for 0.5kV, this connector is ideal for demanding industrial applications. With a mating cycle of 500, it offers long-term reliability. Suitable for use with 30 AWG wire, it meets Class I performance standards. Upgrade your connectivity solutions with the har-flex® Female Connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
