| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15728362601000 |
| Color: | Black |
| Series: | har-flex® |
| Gender: | Male |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 44 |
| Number of Rows: | 1, 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 1.27 mm, 2.54 mm |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 20 A |
| Voltage Rating: | 0.5 kV |
| SKU: | HRT15728362601000 |
15728362601000
Specifications
Detailed Description

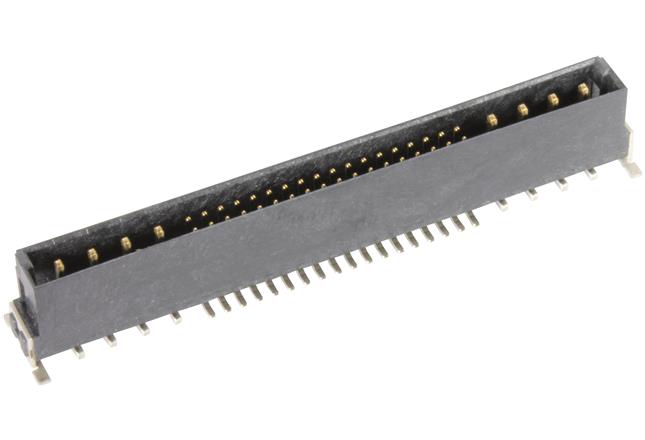

Introducing the har-flex® Black Male Connector, SKU 15728362601000, designed for high-performance board-to-board PCB connections. Featuring a durable Liquid Crystal Polymer housing, this connector ensures reliable operation in a wide temperature range from -55°C to 125°C. With 44 contacts arranged in 2 rows on a 2.54mm pitch, it offers efficient signal transmission. The termination method is solder, guaranteeing secure and lasting connections. Copper Alloy contacts with Tin Over Nickel and Noble Metal Over Nickel plating provide excellent conductivity and corrosion resistance. Rated for 20A current and 0.5kV voltage, this connector is ideal for demanding applications. With a straight mount angle and UL 94V-0 flammability rating, it is easy to install and safe to use. Trust in the quality and performance of this har-flex® connector for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
