| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15758362601000 |
| Color: | Black |
| Pitch: | 1.27 mm, 2.54 mm |
| Gender: | Male |
| Series: | har-flex® |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Current Rating: | 22.5 A |
| Voltage Rating: | 0.5 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 44 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT15758362601000 |
15758362601000
Specifications
Detailed Description

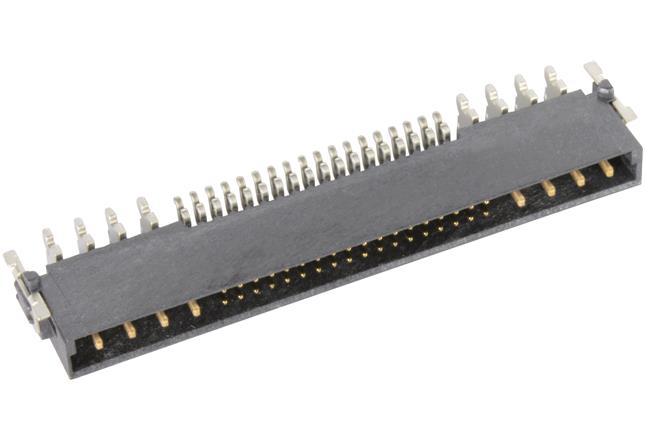

Introducing the Black har-flex® Male Connector, SKU 15758362601000, designed for high-performance board-to-board PCB connections. Featuring a durable housing crafted from Liquid Crystal Polymer, this connector ensures reliable operation in a wide range of environments, with a temperature tolerance from -55°C to 125°C. With 44 contacts for seamless data and power transmission, each contact is made of Copper Alloy with Tin over Nickel and Noble Metal plating, guaranteeing optimal conductivity. The solder termination method and 2.54mm pitch offer easy installation on PCBs, while the right angle mount angle allows for space-saving in tight layouts. Engineered for longevity, this connector boasts a mating cycle rating of 500 cycles and a flammability rating of UL 94V-0. With a current rating of 22.5A and voltage rating of 0.5kV, it is suitable for high-power applications. Trust in the reliability and performance of this har-flex® connector for your next project.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
