| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15828362701000 |
| Color: | Black |
| Series: | har-flex® |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 44 |
| Number of Rows: | 1, 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 1.27 mm, 2.54 mm |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 21.5 A |
| Voltage Rating: | 0.5 kV |
| SKU: | HRT15828362701000 |
15828362701000
Specifications
Detailed Description

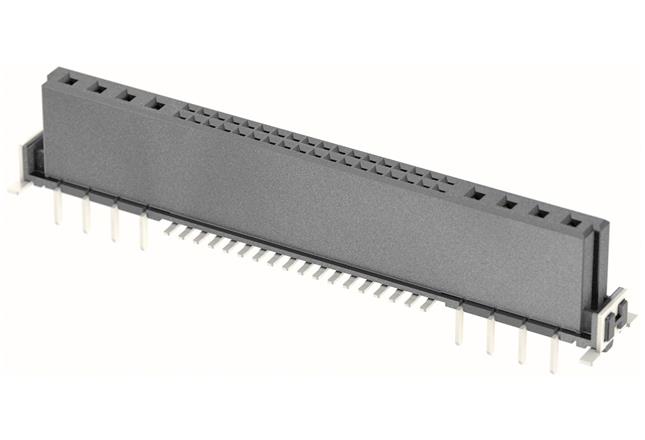

The 15828362701000 har-flex® Female PCB Connector in Black is a high-performance connectivity solution designed for demanding applications. With a housing made of Liquid Crystal Polymer and 44 contacts in a 2-row configuration, it ensures reliable signal transmission. The solder termination method and copper alloy contacts plated with Tin Over Nickel and Noble Metal Over Nickel guarantee excellent conductivity. Operating in temperatures ranging from -55°C to 125°C, this connector is suitable for a wide range of environments. With a pitch of 2.54mm and 1.27mm, it offers versatility in PCB layout. Its straight mount angle and UL 94V-0 flammability rating ensure easy installation and safety compliance. Rated for 21.5A and 0.5kV, it meets high-power and voltage requirements. Perfect for board-to-board connections, mezzanine, and board stacking applications, the 15828362701000 is a reliable and durable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
