| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 15854162601000 |
| Color: | Black |
| Series: | har-flex® |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 20 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 1.27 mm, 2.54 mm |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 22.5 A |
| Voltage Rating: | 0.5 kV |
| SKU: | HRT15854162601000 |
15854162601000
Specifications
Detailed Description

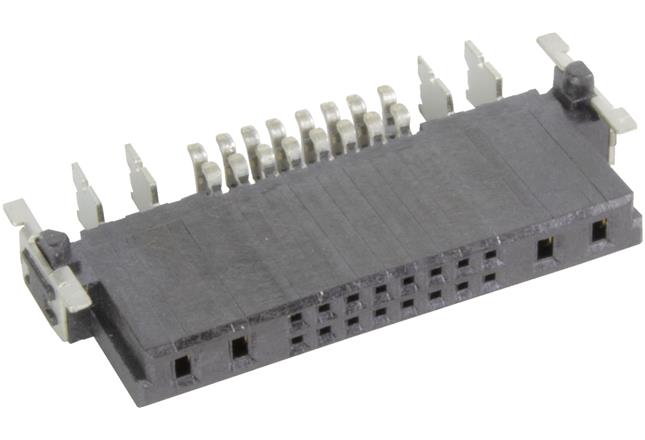

The 15854162601000 har-flex® female connector in sleek black is a versatile and reliable choice for board-to-board PCB connections. With a durable housing made of Liquid Crystal Polymer and 20 copper alloy contacts plated with tin over nickel, it ensures secure and efficient solder termination. Operating flawlessly in temperatures ranging from -55°C to 125°C, it offers high performance in various environments. Featuring a pitch of 2.54mm and 1.27mm, right-angle mount angle, and a UL 94V-0 flammability rating, it guarantees ease of installation and compliance with safety standards. With a current rating of 22.5A and a voltage rating of 0.5kV, it is suitable for a wide range of applications. With 500 mating cycles, it ensures long-term durability. Perfect for demanding industrial and electronic projects, this connector is a top choice for engineers and manufacturers seeking quality and reliability.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
