17011101402

HRT17011101402
Heilind Number:HRT17011101402
Manufacturer:HARTING
Manufacturer Number:17011101402
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

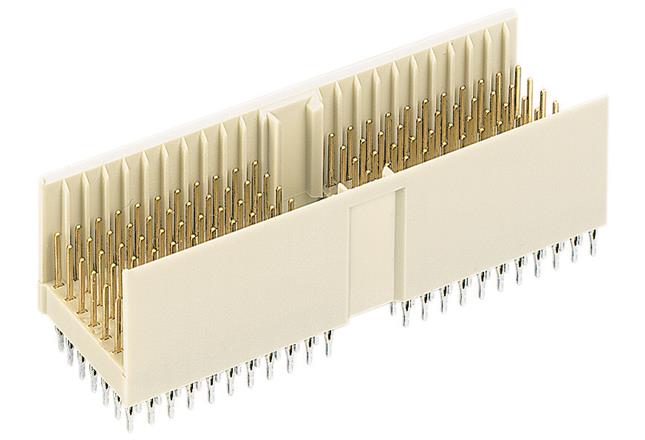

har-bus® HM, Type A, Connector; Male connector; Thermoplastic resin, glass-fibre filled, Beige; Motherboard to daughtercard; Press-in termination

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:HARTING
Manufacturer Part Number:HARTING 17011101402
Color:Beige
Pitch:2 mm
Gender:Male
Series:har-bus® HM
IP Rating:IP20
Mount Angle:Straight
Mating Cycles:500 cycle
Current Rating:1 A
Number of Rows:7
Voltage Rating:0.75 kV
Contact Plating:Nickel, Noble Metal Over Nickel
Contact Material:Copper Alloy
Housing Material:Plastic
Number of Contacts:110
Termination Method:Press-Fit
Flammability Rating:UL 94V-0
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
Part Aliases:
SKU:HRT17011101402

Detailed Description

Introducing the har-bus® HM Type A Connector, designed for seamless motherboard to daughtercard connectivity. This Male connector features a durable construction of thermoplastic resin, glass-fibre filled in a sleek Beige hue. With 110 contacts spread across 7 rows, this connector ensures efficient data transfer. The Press-Fit termination method guarantees a secure and stable connection. Crafted with Copper Alloy contacts plated with Nickel and Noble Metal, it offers reliable performance even in demanding environments. Operating temperature ranging from -55°C to 125°C, it is suitable for a wide range of applications. With a pitch of 2mm and IP20 rating, it provides both performance and protection. UL 94V-0 rated for flammability, it meets high safety standards. Perfect for use in Board to Board PCB connections, Mezzanine & Board Stacking, this connector is a must-have for your electronic projects.
