| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17011541201 |
| Color: | Beige |
| Series: | har-bus® HM |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 154 |
| Number of Rows: | 7 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2 mm |
| Mount Angle: | Straight |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 0.75 kV |
| SKU: | HRT17011541201 |
17011541201
Specifications
Detailed Description

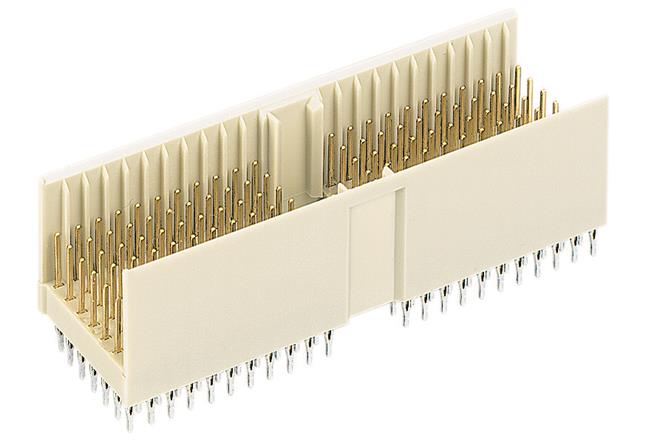

The har-bus® HM Type A Connector is a durable and reliable solution for connecting your motherboard to a daughtercard. This male connector features a rugged housing made of thermoplastic resin with glass-fibre filling, ensuring long-lasting performance. With 154 contacts arranged in 7 rows, it provides ample connectivity options for your application. The press-fit termination method ensures secure and stable connections. Nickel plating over a noble metal finish on the copper alloy contacts guarantees excellent conductivity and corrosion resistance. Operating within a wide temperature range of -55°C to 125°C, this connector is suitable for various environments. Its UL 94V-0 flammability rating offers added safety assurance. RoHS compliant and capable of handling 1A current at 0.75kV, it meets industry standards for environmental responsibility and performance. Upgrade your board-to-board and PCB connectivity with the har-bus® HM Type A Connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
