| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17011541205 |
| Color: | Beige |
| Series: | har-bus® HM |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 154 |
| Number of Rows: | 7 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2 mm |
| Mount Angle: | Straight |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 0.75 kV |
| SKU: | HRT17011541205 |
17011541205
Specifications
Detailed Description

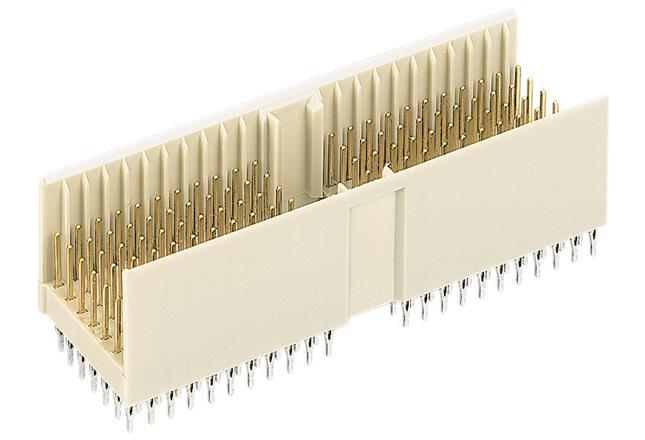

The har-bus® HM Type A Connector is a reliable and high-performance solution for connecting a motherboard to a daughtercard. Featuring a male connector design with 154 contacts arranged in 7 rows, this connector ensures secure and efficient data transfer. Made from thermoplastic resin with glass-fibre filling, it offers durability and resilience in demanding environments. The press-fit termination method allows for easy and stable installation. With a temperature range of -55°C to 125°C, it is suitable for a wide range of applications. The beige housing color, along with UL 94V-0 flammability rating, ensures safety and compliance. RoHS compliant and featuring a voltage rating of 0.75 kV, this connector meets international standards for quality and environmental responsibility. Perfect for use in board-to-board PCB connections, the har-bus® HM Type A Connector is a versatile and essential component for your electronic systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
