| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 17021252205 |
| Series: | har-bus® HM |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 125 |
| Number of Rows: | 7 |
| Termination Method: | Press-Fit |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2 mm |
| Mount Angle: | Straight |
| Mating Cycles: | 250 cycle |
| Performance Level: | Class II |
| Current Rating: | 1 A |
| Voltage Rating: | 0.75 kV |
| SKU: | HRT17021252205 |
17021252205
Specifications
Detailed Description

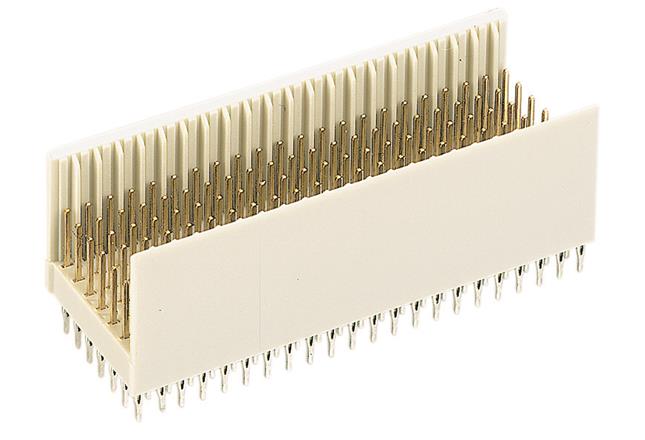

Introducing the HAR-BUS HM MEL. TYP B25 AFS 2, a cutting-edge backplane connector designed for high-performance applications. This male connector, part of the har-bus® HM series, features a durable plastic housing and 125 contacts arranged in 7 rows, ensuring seamless connectivity. With a press-fit termination method and nickel plating, it guarantees reliable and secure contact with a wide operating temperature range from -55°C to 125°C. Boasting a pitch of 2mm and straight mount angle, it offers easy installation in various systems. Rated for 250 mating cycles and meeting Class II performance levels, this connector is built to withstand rigorous use. With a current rating of 1A and voltage rating of 0.75kV, it is suitable for demanding board-to-board PCB connections in industrial and commercial settings. Trust in the superior quality and performance of the HAR-BUS HM MEL. TYP B25 AFS 2 for your connectivity needs.
